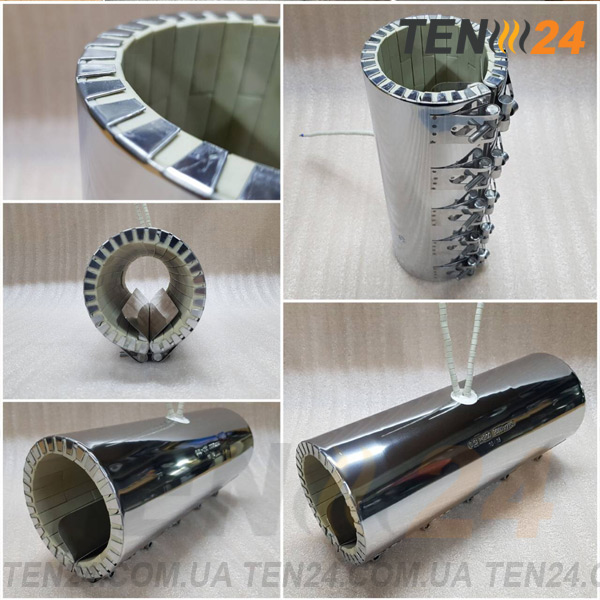

Ceramic Band Heaters photo 9 TEN24
Ceramic Band Heaters photo 9 TEN24
Ceramic Band Heaters photo 10 TEN24
Ceramic Band Heaters photo 10 TEN24

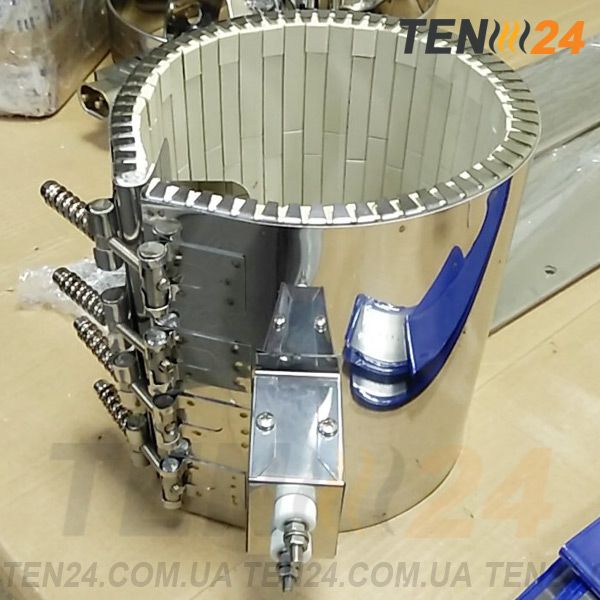

Ceramic Band Heaters photo 11 TEN24
Ceramic Band Heaters photo 11 TEN24
Ceramic Band Heaters photo 12 TEN24
Ceramic Band Heaters photo 12 TEN24

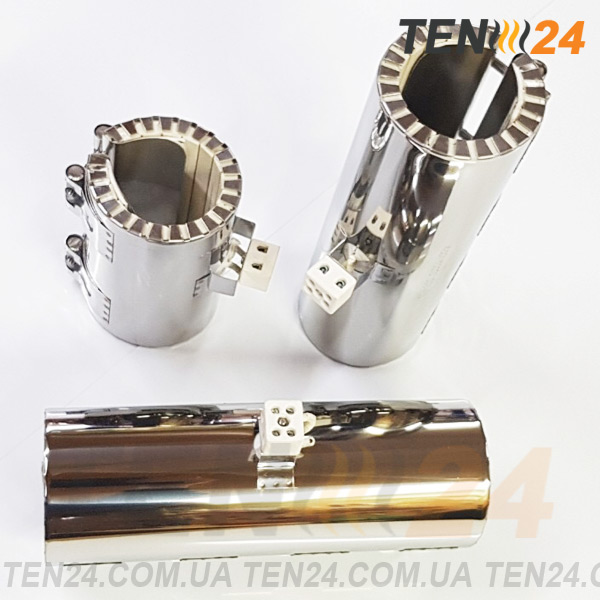

Ceramic Band Heaters photo 13 TEN24
Ceramic Band Heaters photo 13 TEN24
Ceramic Band Heaters photo 14 TEN24
Ceramic Band Heaters photo 14 TEN24

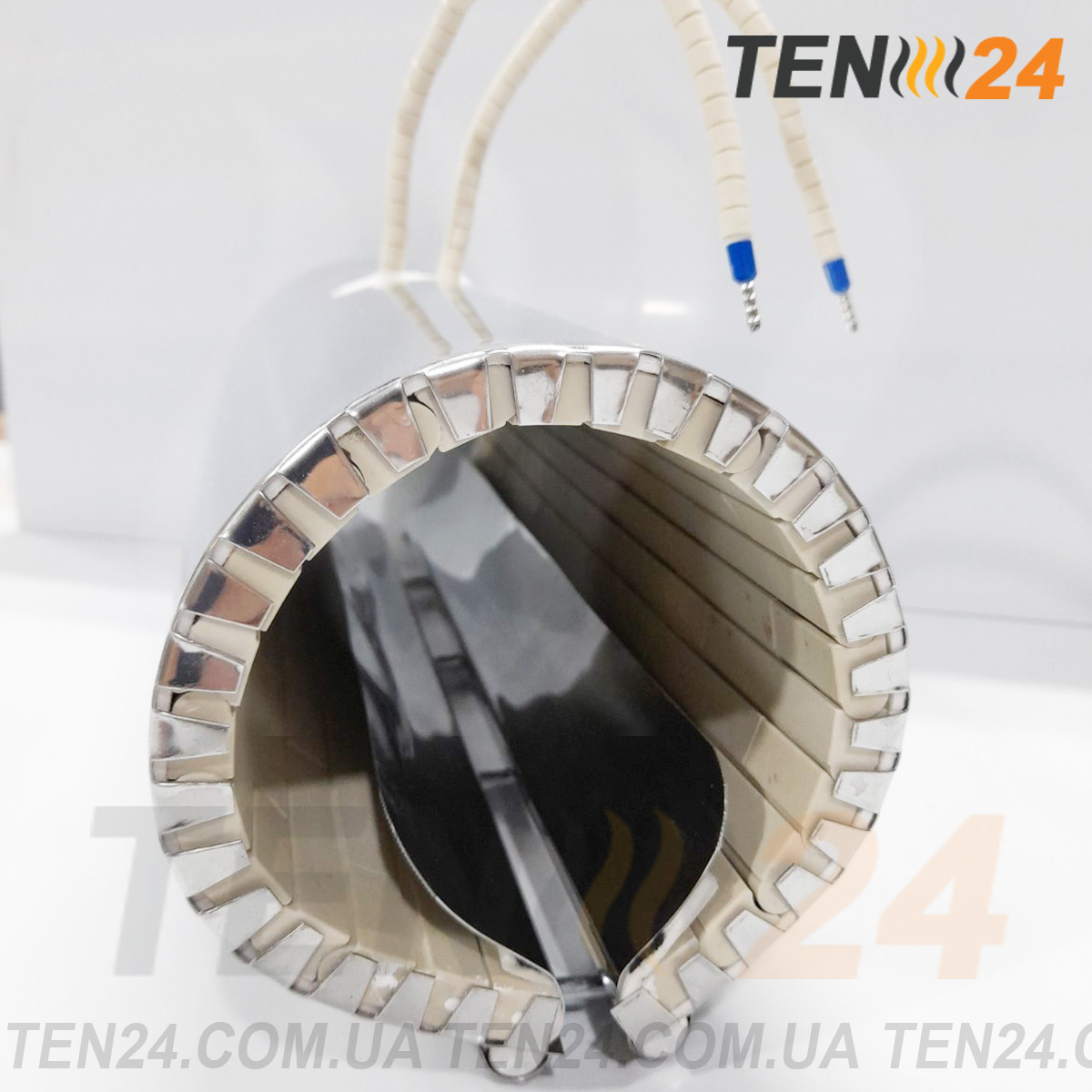

Ceramic Band Heaters photo 15 TEN24
Ceramic Band Heaters photo 15 TEN24
Ceramic Band Heaters photo 16 TEN24
Ceramic Band Heaters photo 16 TEN24
Ceramic Band Heaters photo 17 TEN24
Ceramic Band Heaters photo 17 TEN24
Ceramic Band Heaters photo 18 TEN24
Ceramic Band Heaters photo 18 TEN24
Ceramic Band Heaters photo 19 TEN24
Ceramic Band Heaters photo 19 TEN24
Ceramic Band Heaters photo 20 TEN24
Ceramic Band Heaters photo 20 TEN24
Ceramic Band Heaters photo 21 TEN24
Ceramic Band Heaters photo 21 TEN24
Ceramic Band Heaters photo 22 TEN24
Ceramic Band Heaters photo 22 TEN24
Ceramic Band Heaters photo 23 TEN24
Ceramic Band Heaters photo 23 TEN24
Ceramic Band Heaters photo 1 TEN24
Ceramic Band Heaters photo 2 TEN24
Ceramic Band Heaters photo 3 TEN24
Ceramic Band Heaters photo 4 TEN24
Ceramic Band Heaters photo 5 TEN24
Ceramic Band Heaters photo 6 TEN24
Ceramic Band Heaters photo 7 TEN24
Ceramic Band Heaters photo 8 TEN24
Ceramic Band Heaters photo 9 TEN24
Ceramic Band Heaters photo 10 TEN24
Ceramic Band Heaters photo 11 TEN24
Ceramic Band Heaters photo 12 TEN24
Ceramic Band Heaters photo 13 TEN24
Ceramic Band Heaters photo 14 TEN24
Ceramic Band Heaters photo 15 TEN24
Ceramic Band Heaters photo 16 TEN24
Ceramic Band Heaters photo 17 TEN24
Ceramic Band Heaters photo 18 TEN24
Ceramic Band Heaters photo 19 TEN24
Ceramic Band Heaters photo 20 TEN24
Ceramic Band Heaters photo 21 TEN24
Ceramic Band Heaters photo 22 TEN24
Ceramic Band Heaters photo 23 TEN24

Ceramic insulated Band Heaters are capable of generating higher temperatures than Mica Band Heaters. Band Ceramic Heaters from TEN24 are the ideal solution for high watt densities and high operating temperature applications, especially for the plastics industry.

Such heaters are used on molds, granulators, extruders.

  • Maximum power: 9 W/cm2

  • Working temperature: 500°С

  • Minimum diameter (inner): 60mm

  • Maximum diameter (inner): 1000 mm

  • Thickness with insulation: 12mm

  • Width: 30-500mm

  • Custom heater can be made in 3-5 days

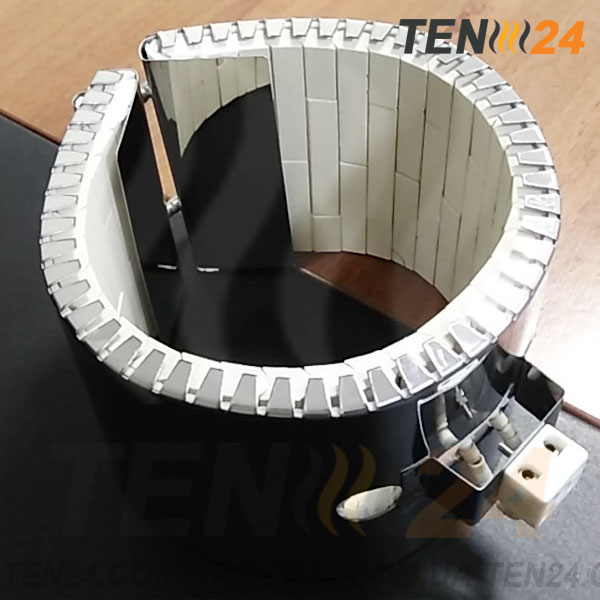

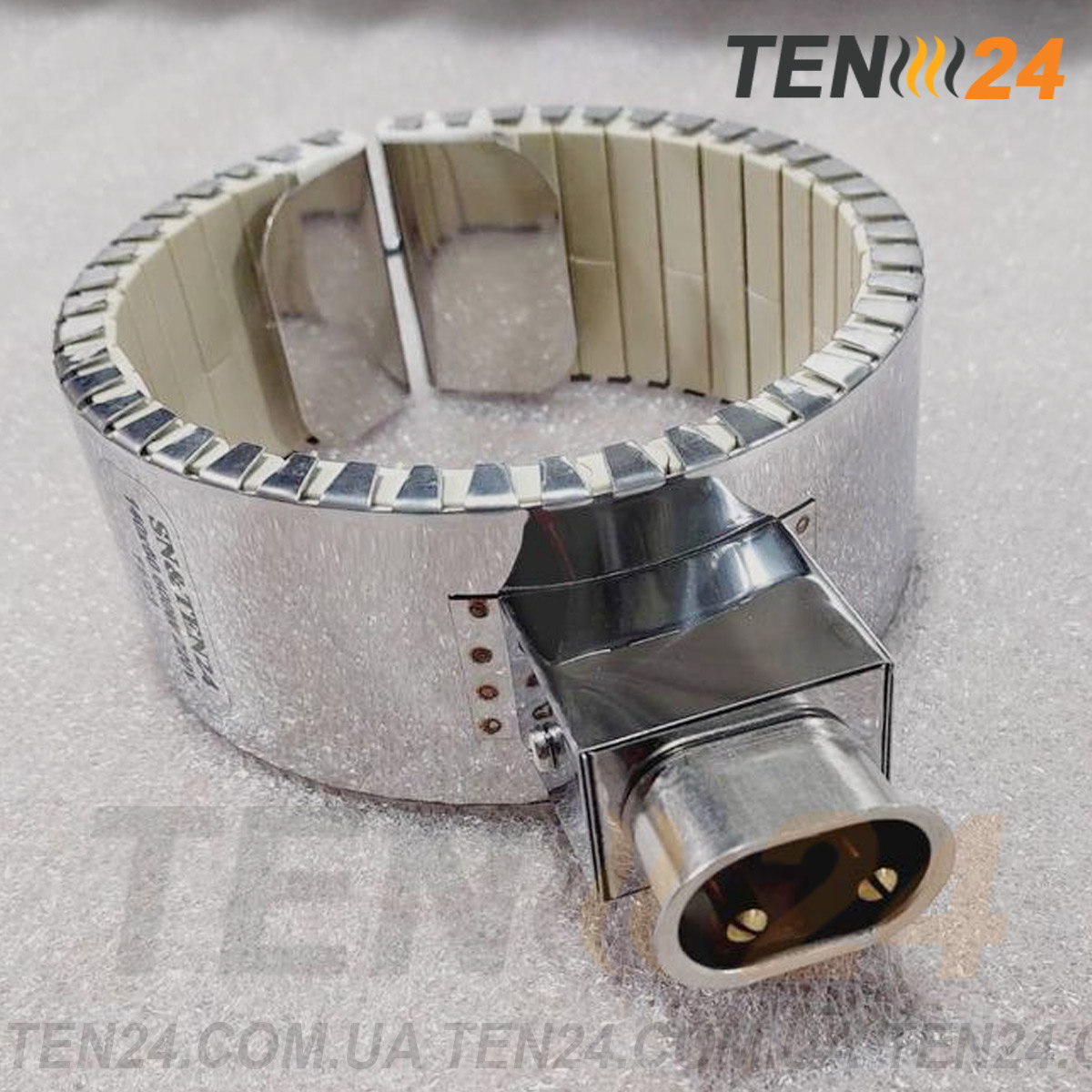

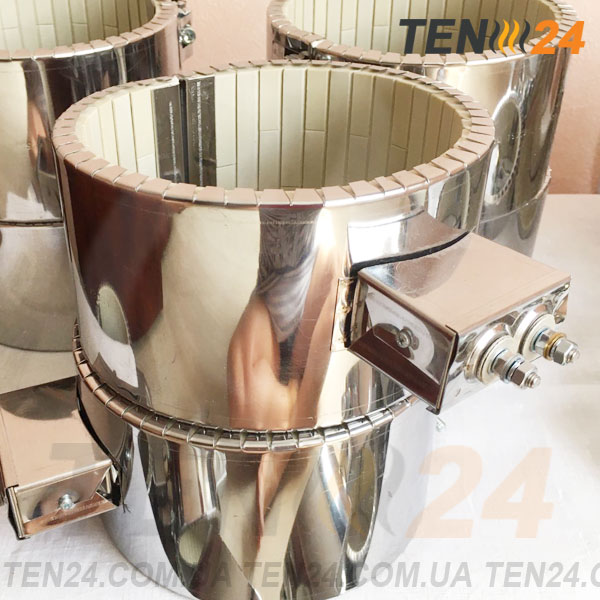

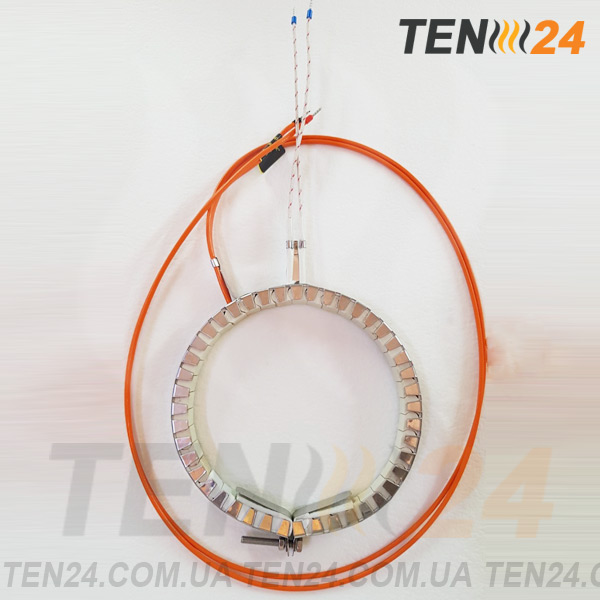

Ceramic Band Heaters are produced by picking up a heating tape from ceramic elements of a certain size. A resistive heating element (nickel-chrome) is placed inside the special holes of the ceramic blocks. Outside, the heater is fixed in a sheet steel housing, which gives the heater a fixed shape and protects fragile ceramic parts from mechanical impact. If necessary, a steel tie can be placed inside, so that the outer shell of the heating element will heat up.

You can send us a drawing by e-mail, or call us by phone and describe all the parameters and dimensions of the heated surface, and we will help you calculate the most suitable heating element. This will help us produce the perfect Ceramic Band Heater for your needs.

Applications

  • Injection molding
  • Blow-molding
  • Plastic extrusion
  • Container, pipe, or tank heating
  • Pharmaceutical applications
  • Applications in the food industry

Delivery

Ceramic Band Heaters can be delivered from Odessa (Ukraine) to European countries: Bulgaria, Hungary, Germany, Slovakia, Czech Republic, Poland, Moldova, and others.

Specifications

Ceramic Band Heater

Min diameter (inner), mm

60

Max diameter (inner), mm

1000

Thickness, mm

12

Min width, mm

30

Max width, mm

500

Maximum watt density, W/cm2

9

Max operating temperature, °С

500

Voltage, V

12, 24, 48, 110, 220/230, 400
