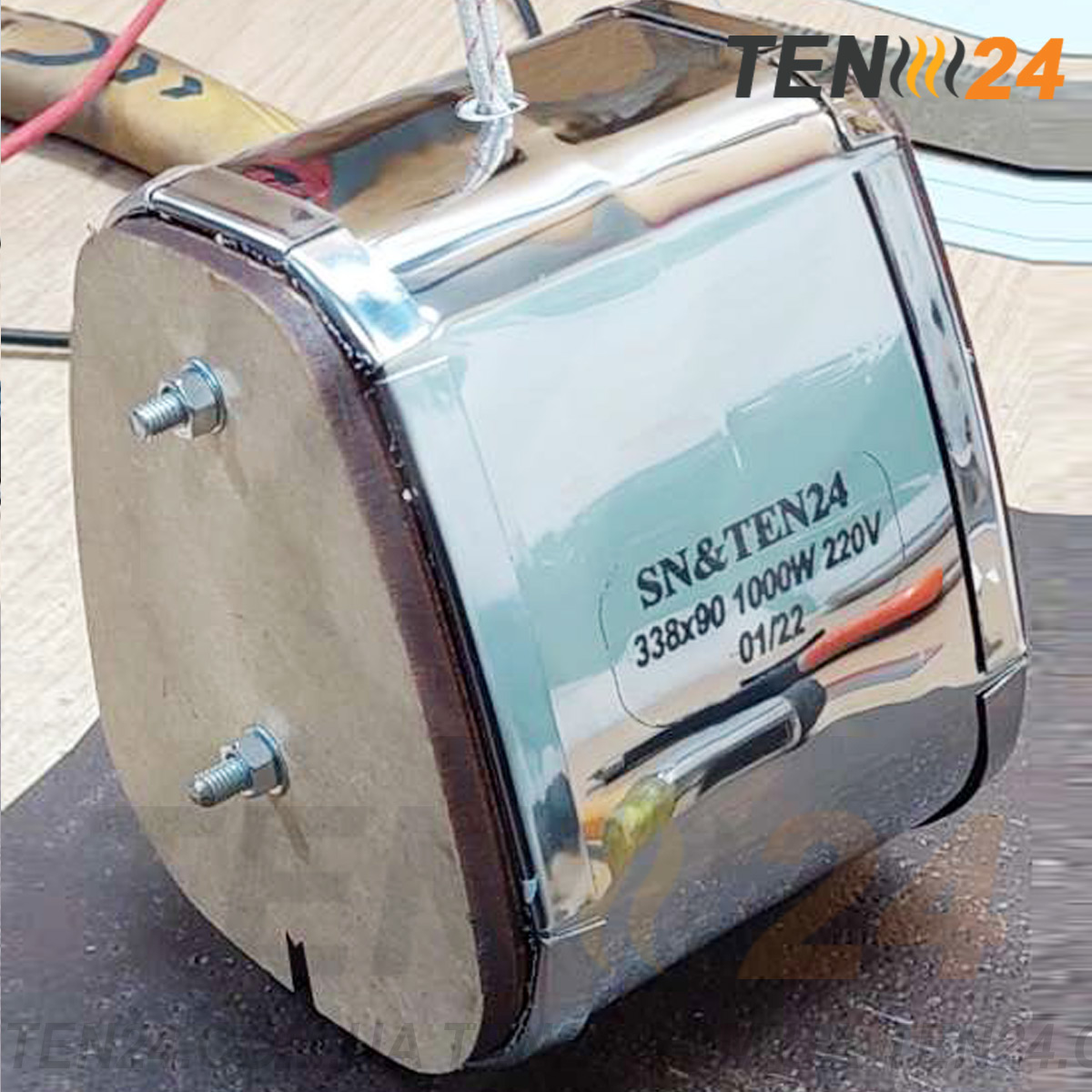

Mica Band Heaters photo 3 TEN24
Mica Band Heaters photo 3 TEN24
Mica Band Heaters photo 4 TEN24
Mica Band Heaters photo 4 TEN24
Mica Band Heaters photo 5 TEN24
Mica Band Heaters photo 5 TEN24

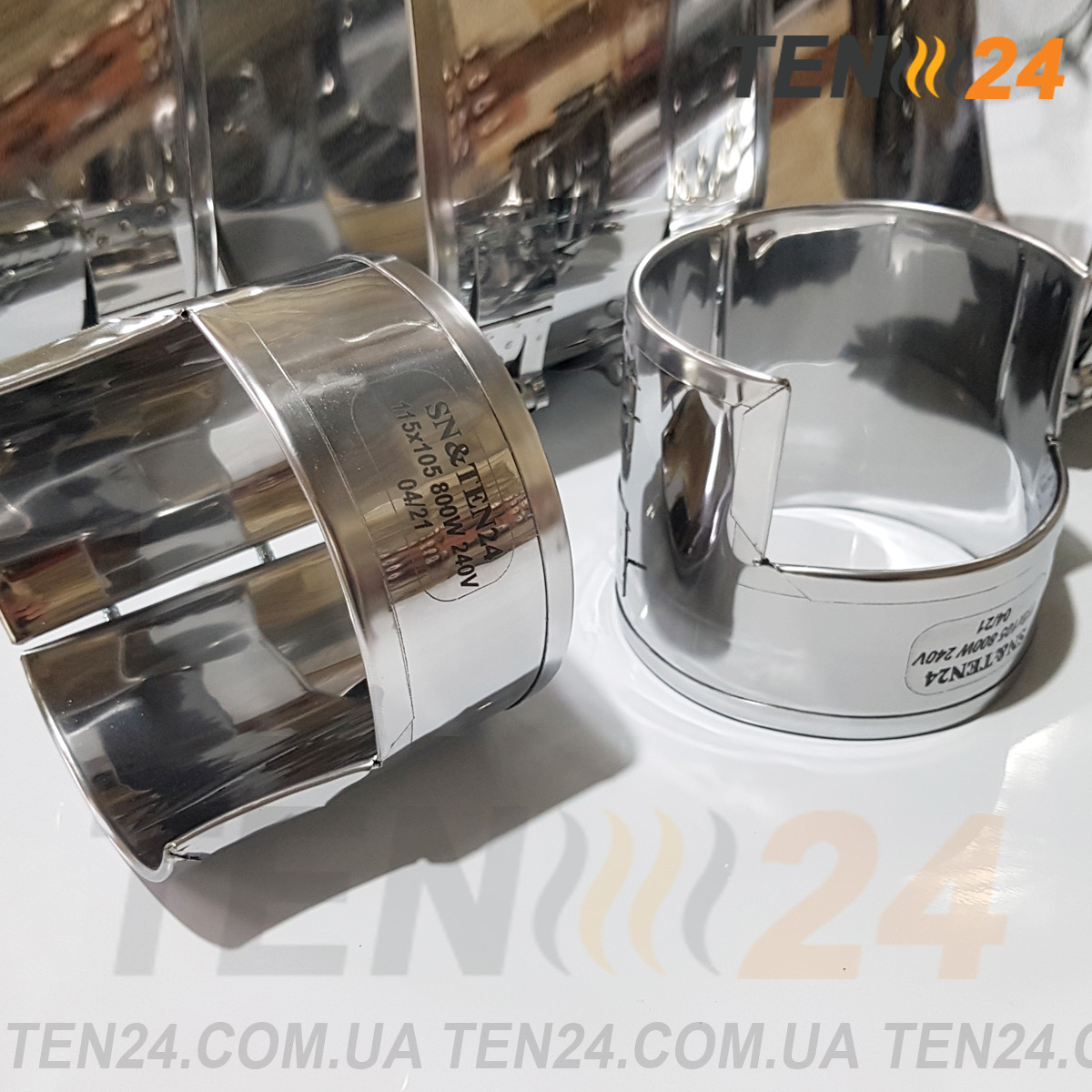

Mica Band Heaters photo 6 TEN24
Mica Band Heaters photo 6 TEN24
Mica Band Heaters photo 7 TEN24
Mica Band Heaters photo 7 TEN24

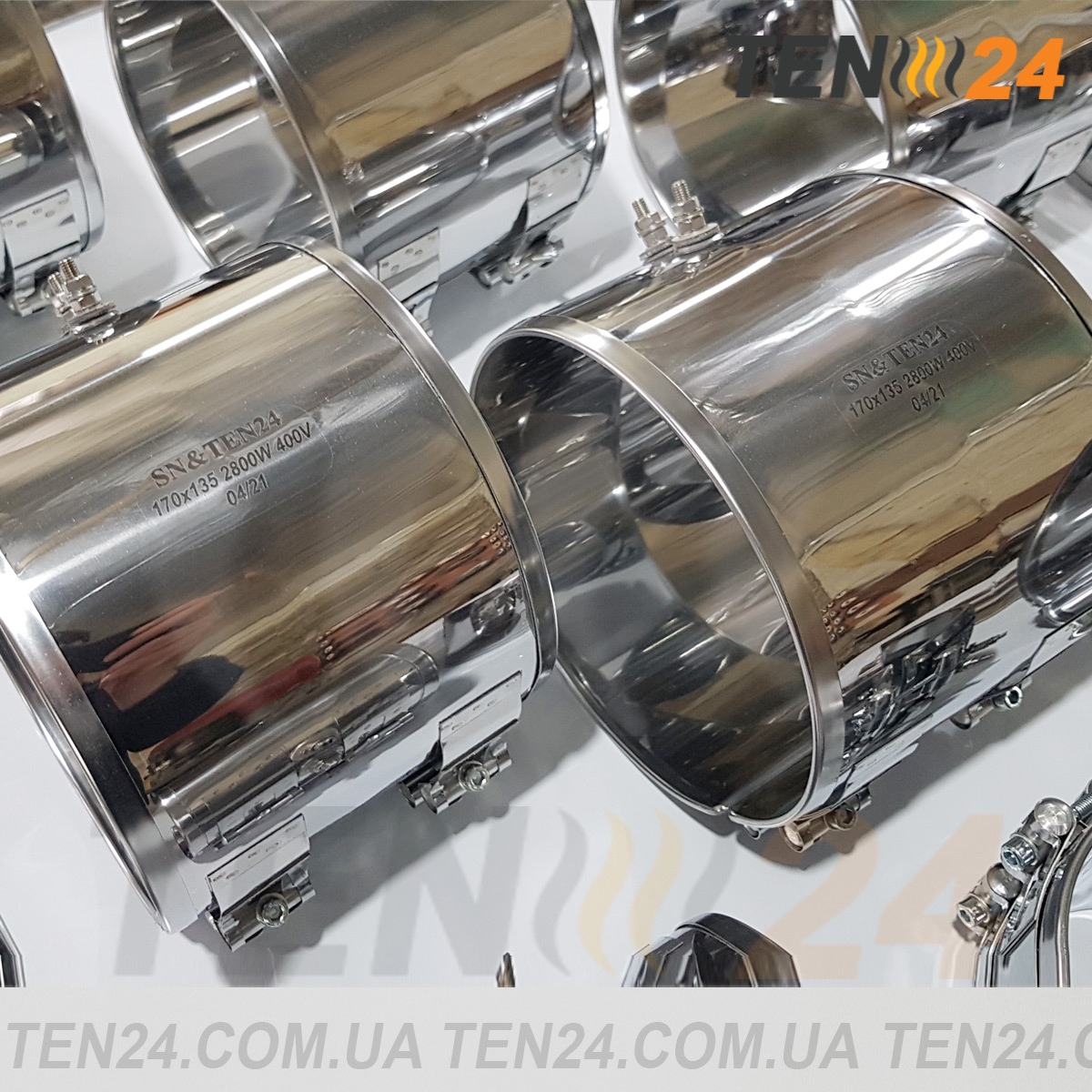

Mica Band Heaters photo 8 TEN24
Mica Band Heaters photo 8 TEN24

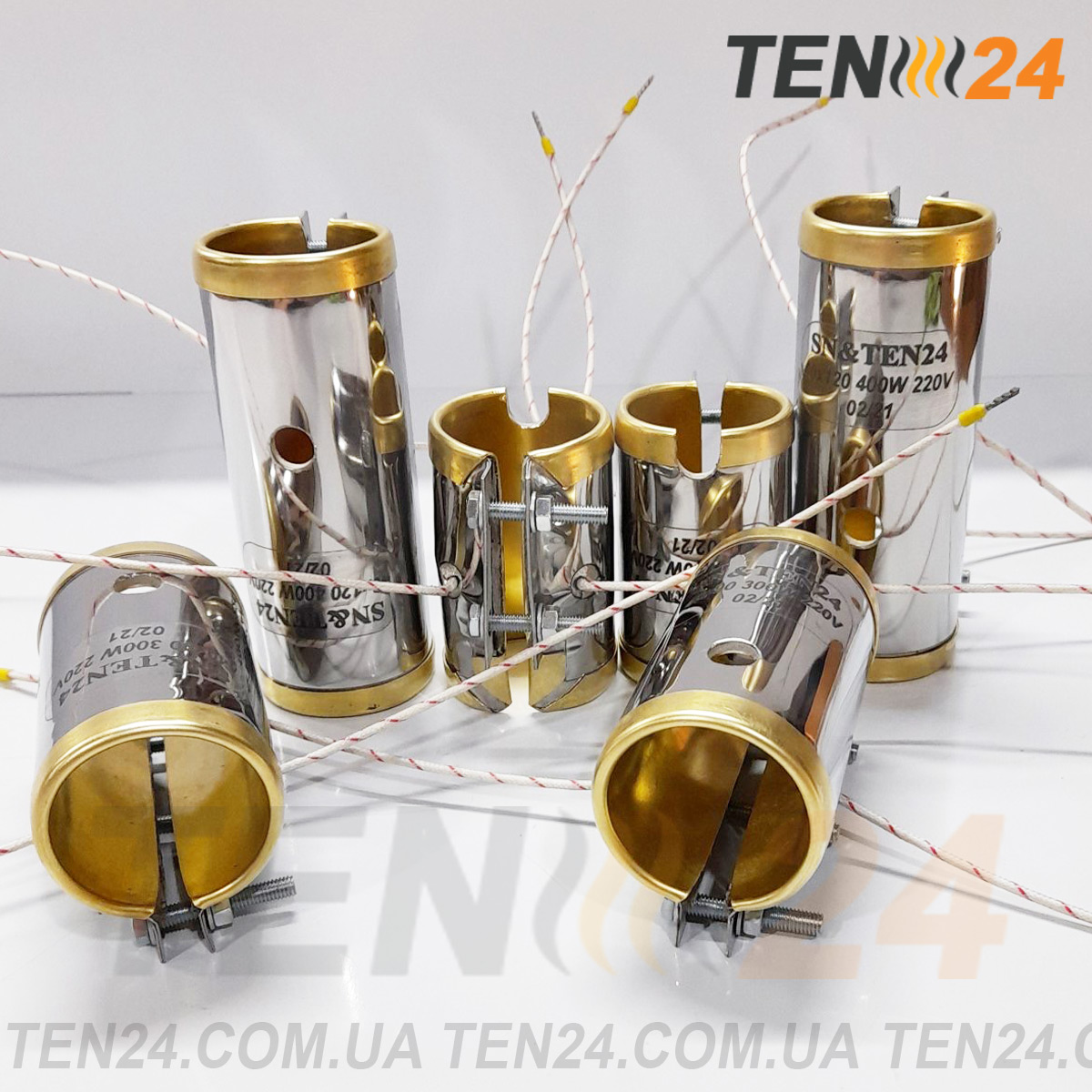

Mica Band Heaters photo 9 TEN24
Mica Band Heaters photo 9 TEN24
Mica Band Heaters photo 10 TEN24
Mica Band Heaters photo 10 TEN24

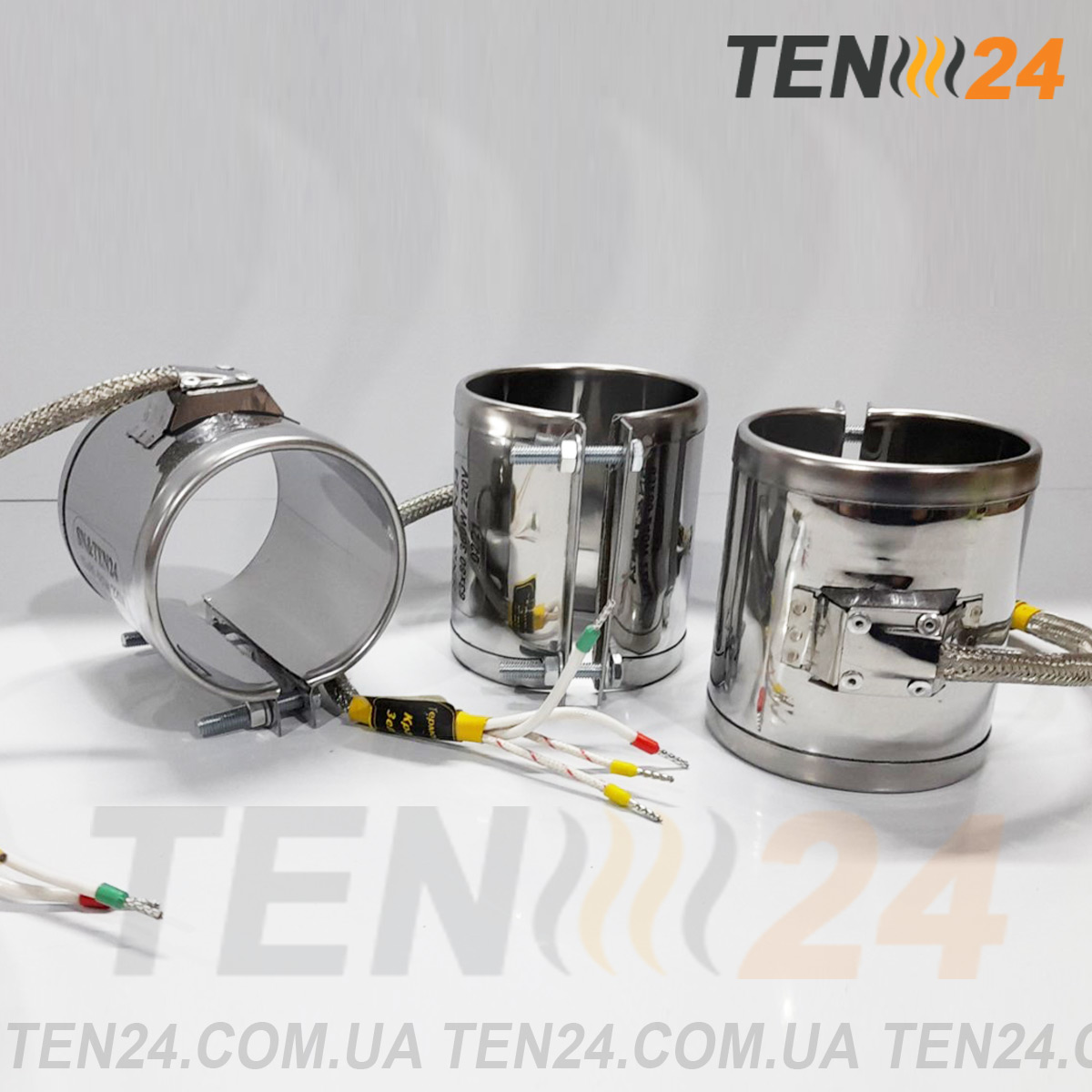

Mica Band Heaters photo 11 TEN24
Mica Band Heaters photo 11 TEN24
Mica Band Heaters photo 12 TEN24
Mica Band Heaters photo 12 TEN24

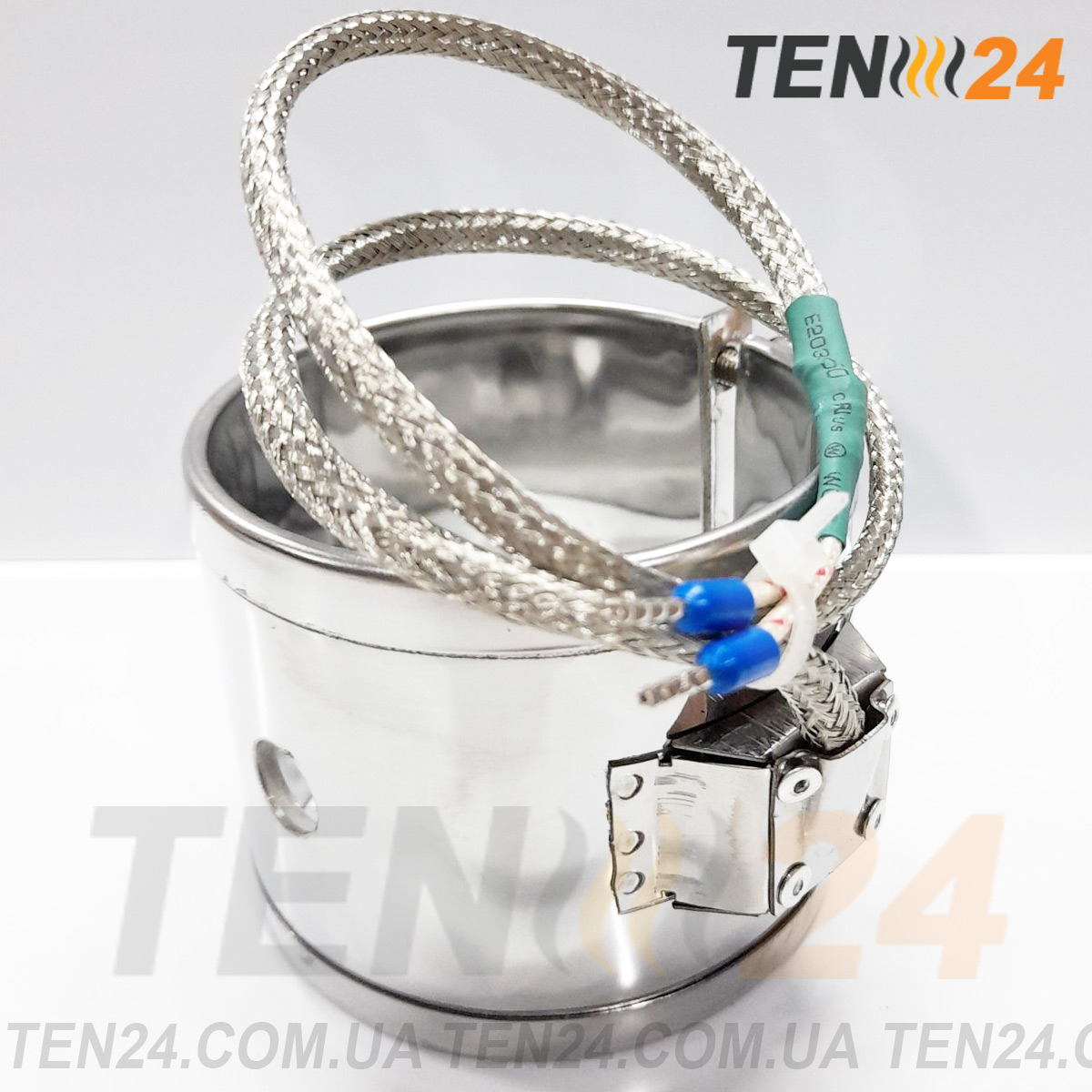

Mica Band Heaters photo 13 TEN24
Mica Band Heaters photo 13 TEN24

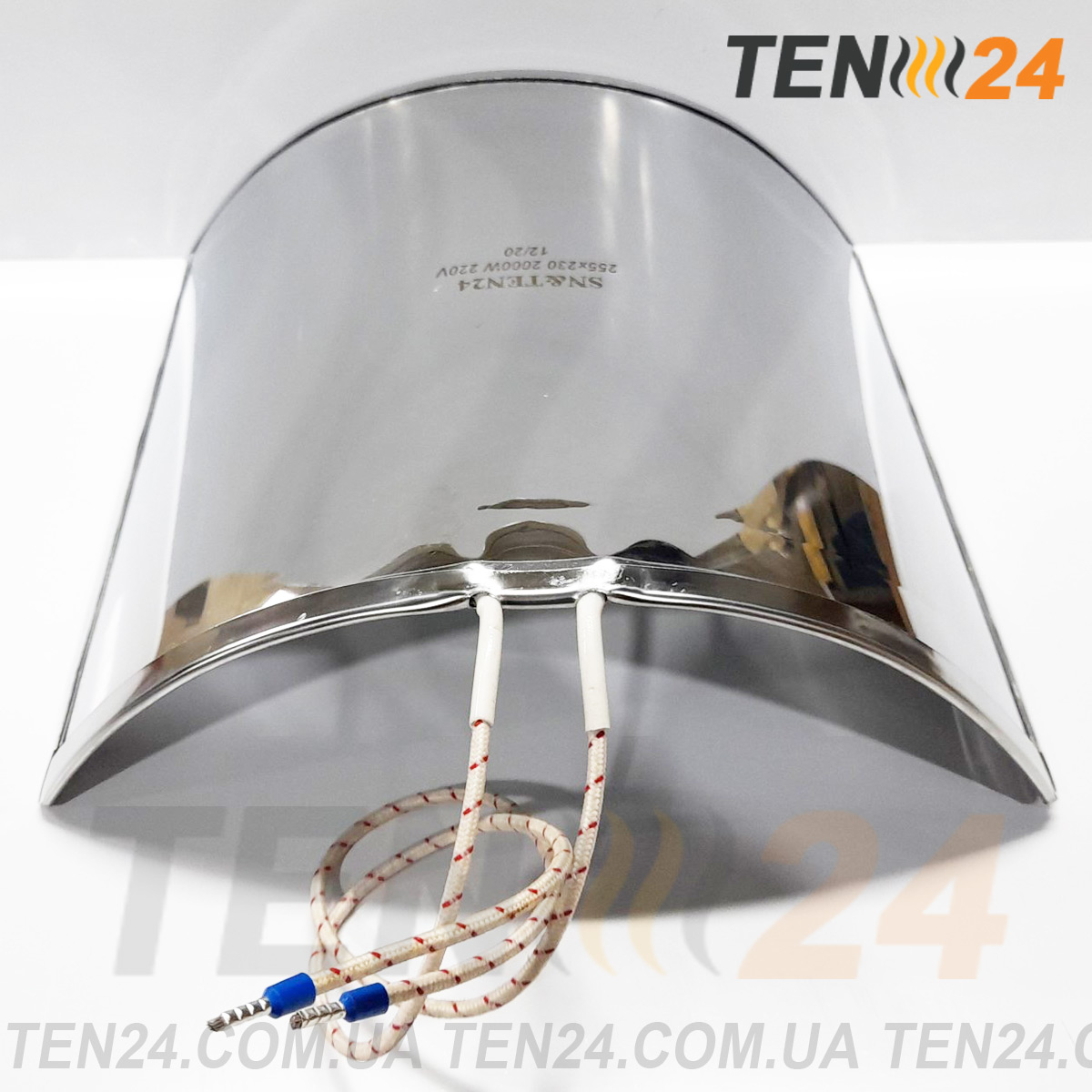

Mica Band Heaters photo 14 TEN24
Mica Band Heaters photo 14 TEN24
Mica Band Heaters photo 15 TEN24
Mica Band Heaters photo 15 TEN24

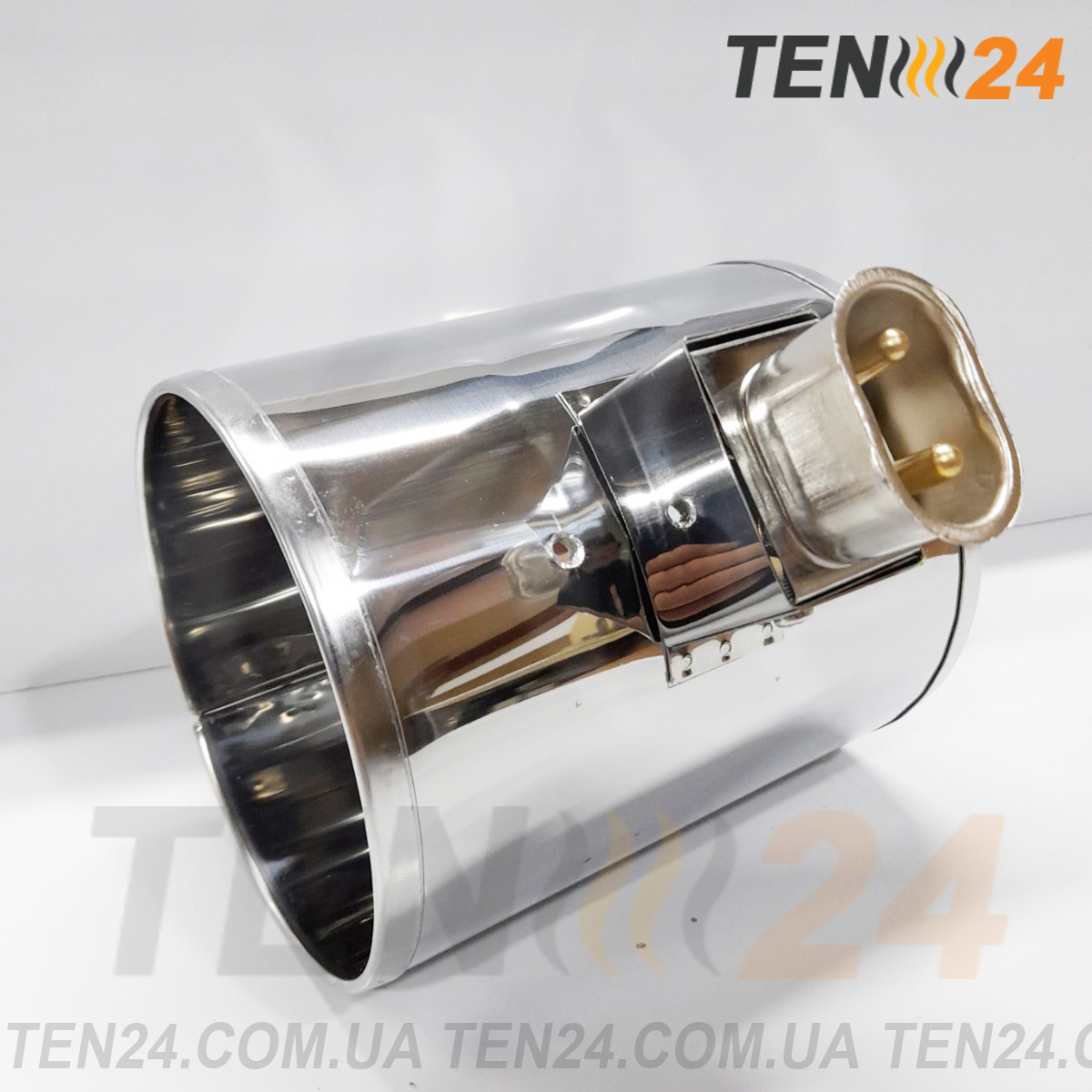

Mica Band Heaters photo 16 TEN24
Mica Band Heaters photo 16 TEN24
Mica Band Heaters photo 17 TEN24
Mica Band Heaters photo 17 TEN24

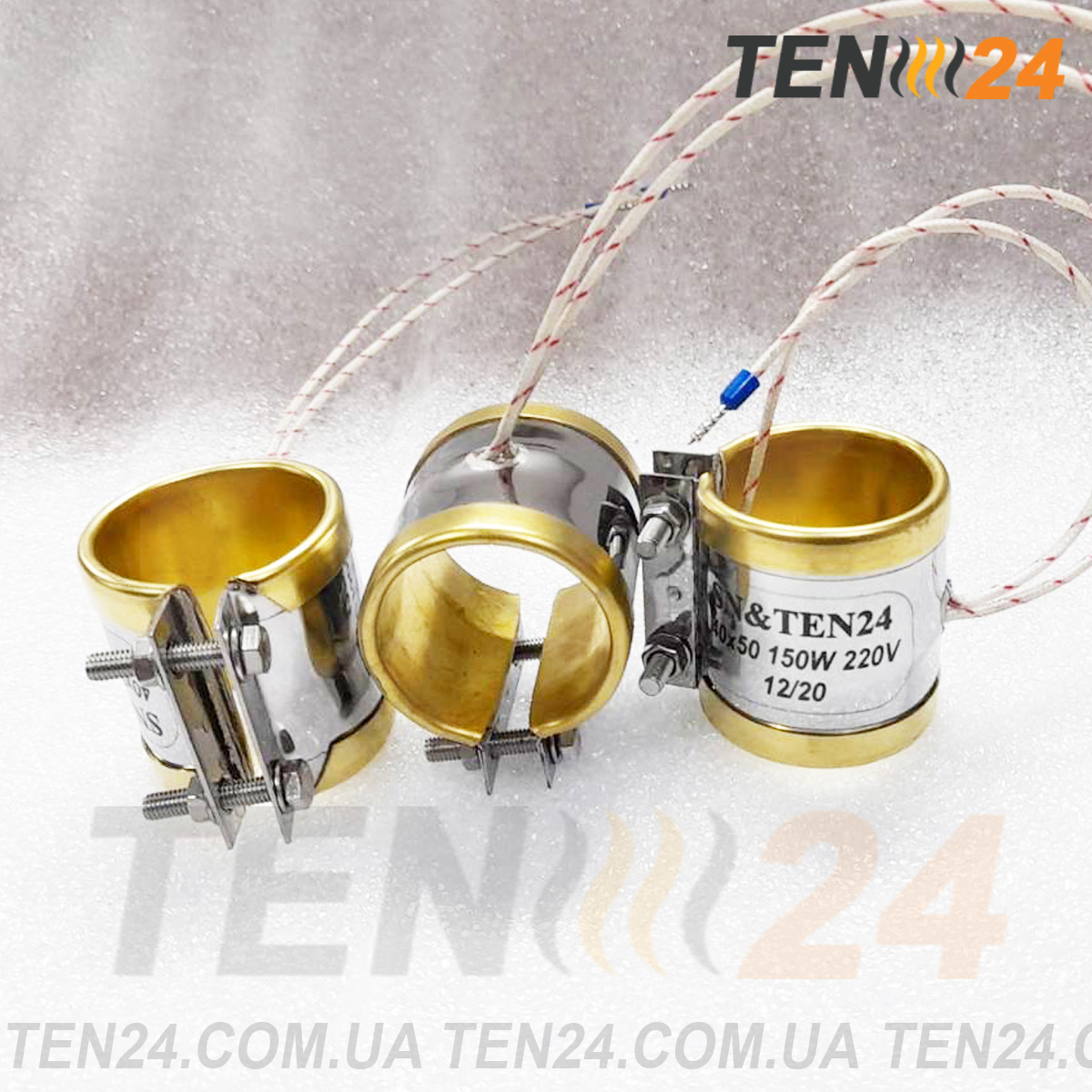

Mica Band Heaters photo 18 TEN24
Mica Band Heaters photo 18 TEN24

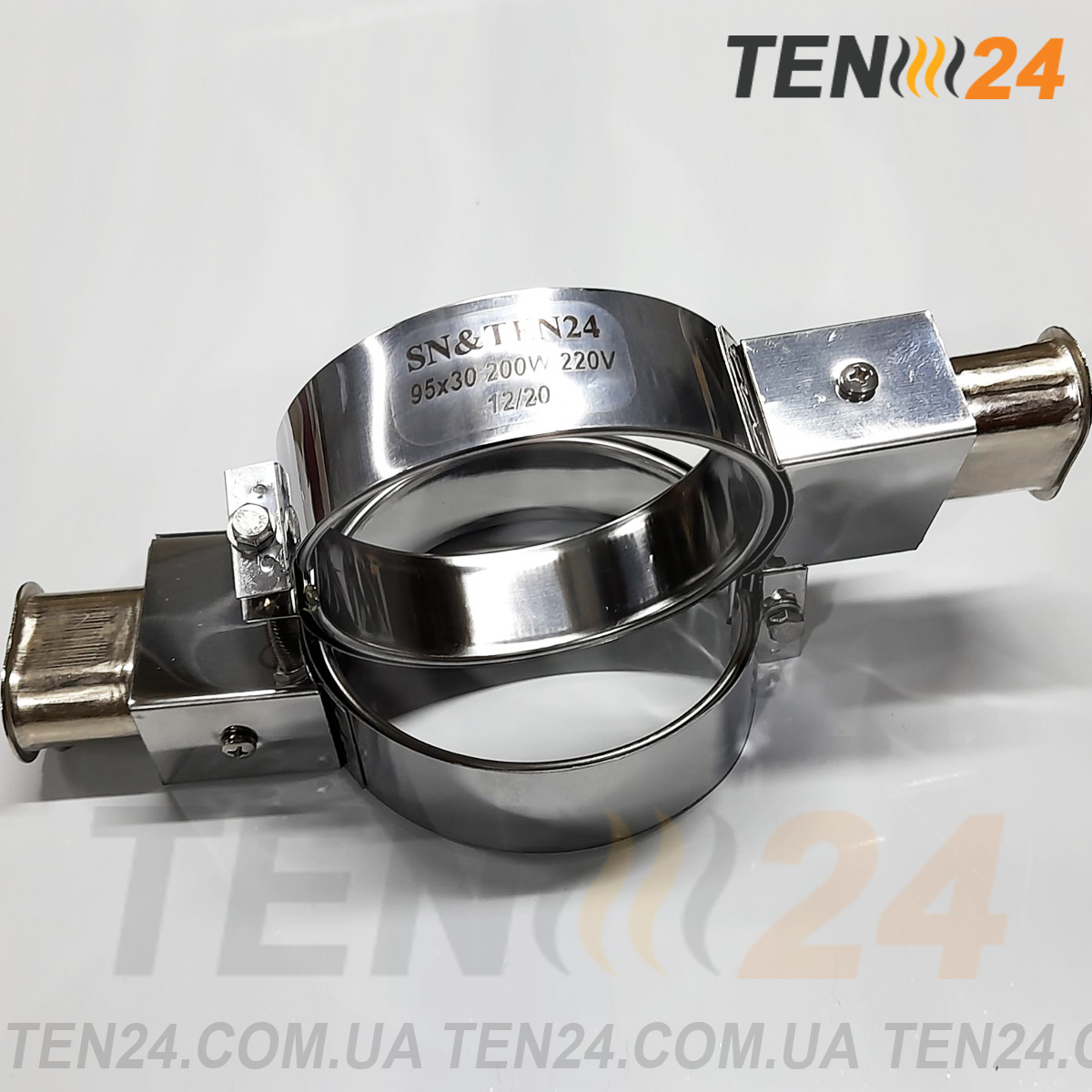

Mica Band Heaters photo 19 TEN24
Mica Band Heaters photo 19 TEN24
Mica Band Heaters photo 20 TEN24
Mica Band Heaters photo 20 TEN24
Mica Band Heaters photo 21 TEN24
Mica Band Heaters photo 21 TEN24

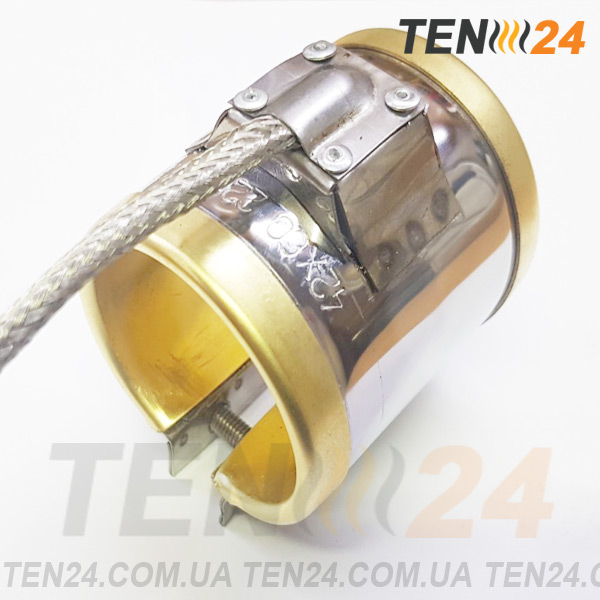

Mica Band Heaters photo 22 TEN24
Mica Band Heaters photo 22 TEN24
Mica Band Heaters photo 23 TEN24
Mica Band Heaters photo 23 TEN24
Mica Band Heaters photo 24 TEN24
Mica Band Heaters photo 24 TEN24
Mica Band Heaters photo 25 TEN24
Mica Band Heaters photo 25 TEN24
Mica Band Heaters photo 26 TEN24
Mica Band Heaters photo 26 TEN24
Mica Band Heaters photo 27 TEN24
Mica Band Heaters photo 27 TEN24

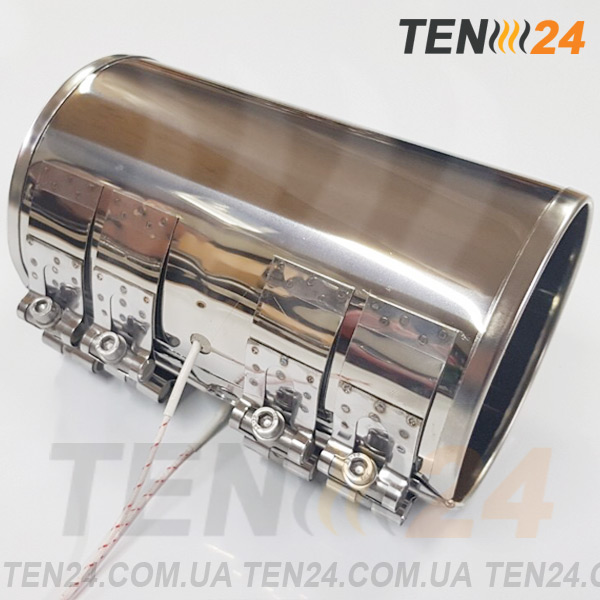

Mica Band Heaters photo 28 TEN24
Mica Band Heaters photo 28 TEN24

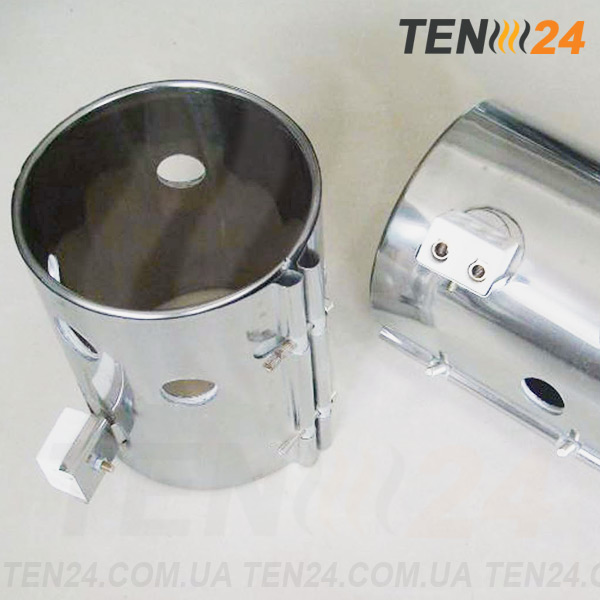

Mica Band Heaters photo 29 TEN24
Mica Band Heaters photo 29 TEN24

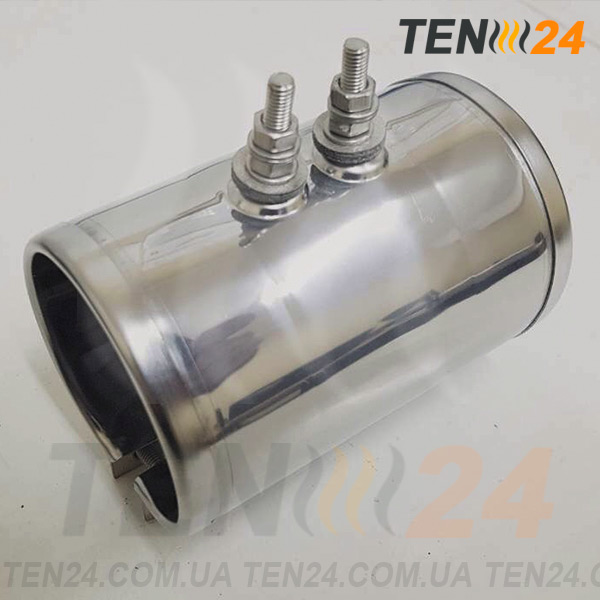

Mica Band Heaters photo 30 TEN24
Mica Band Heaters photo 30 TEN24
Mica Band Heaters photo 31 TEN24
Mica Band Heaters photo 31 TEN24
Mica Band Heaters photo 32 TEN24
Mica Band Heaters photo 32 TEN24
Mica Band Heaters photo 33 TEN24
Mica Band Heaters photo 33 TEN24
Mica Band Heaters photo 34 TEN24
Mica Band Heaters photo 34 TEN24
Mica Band Heaters photo 35 TEN24
Mica Band Heaters photo 35 TEN24
Mica Band Heaters photo 36 TEN24
Mica Band Heaters photo 36 TEN24
Mica Band Heaters photo 37 TEN24
Mica Band Heaters photo 37 TEN24

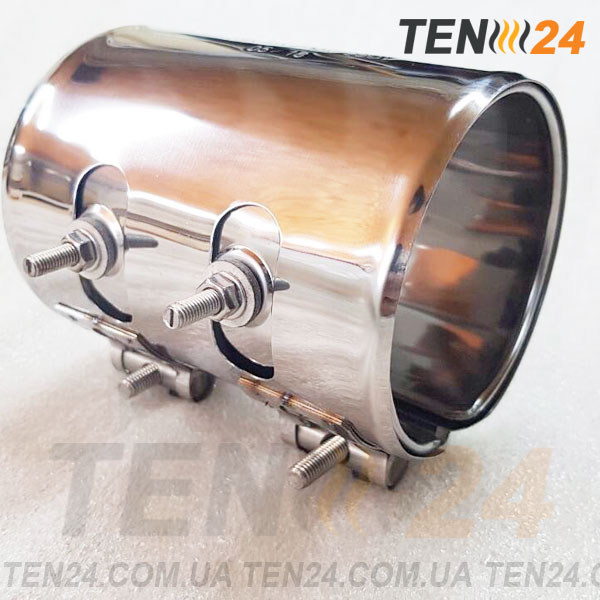

Mica Band Heaters photo 38 TEN24
Mica Band Heaters photo 38 TEN24

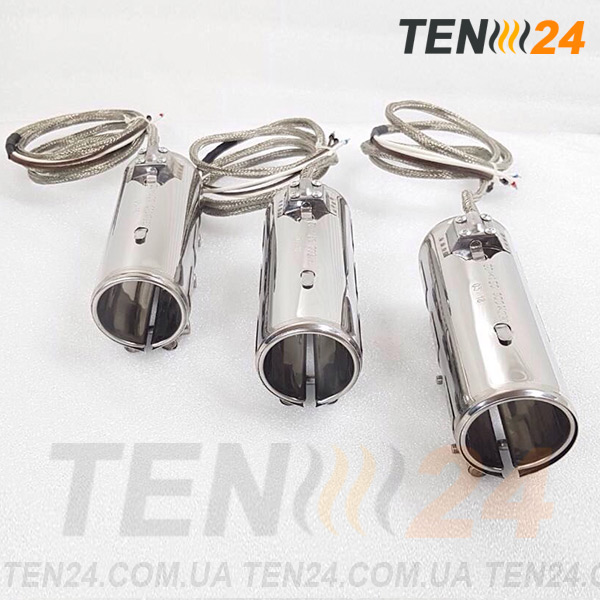

Mica Band Heaters photo 39 TEN24
Mica Band Heaters photo 39 TEN24
Mica Band Heaters photo 40 TEN24
Mica Band Heaters photo 40 TEN24
Mica Band Heaters photo 41 TEN24
Mica Band Heaters photo 41 TEN24
Mica Band Heaters photo 42 TEN24
Mica Band Heaters photo 42 TEN24
Mica Band Heaters photo 43 TEN24
Mica Band Heaters photo 43 TEN24

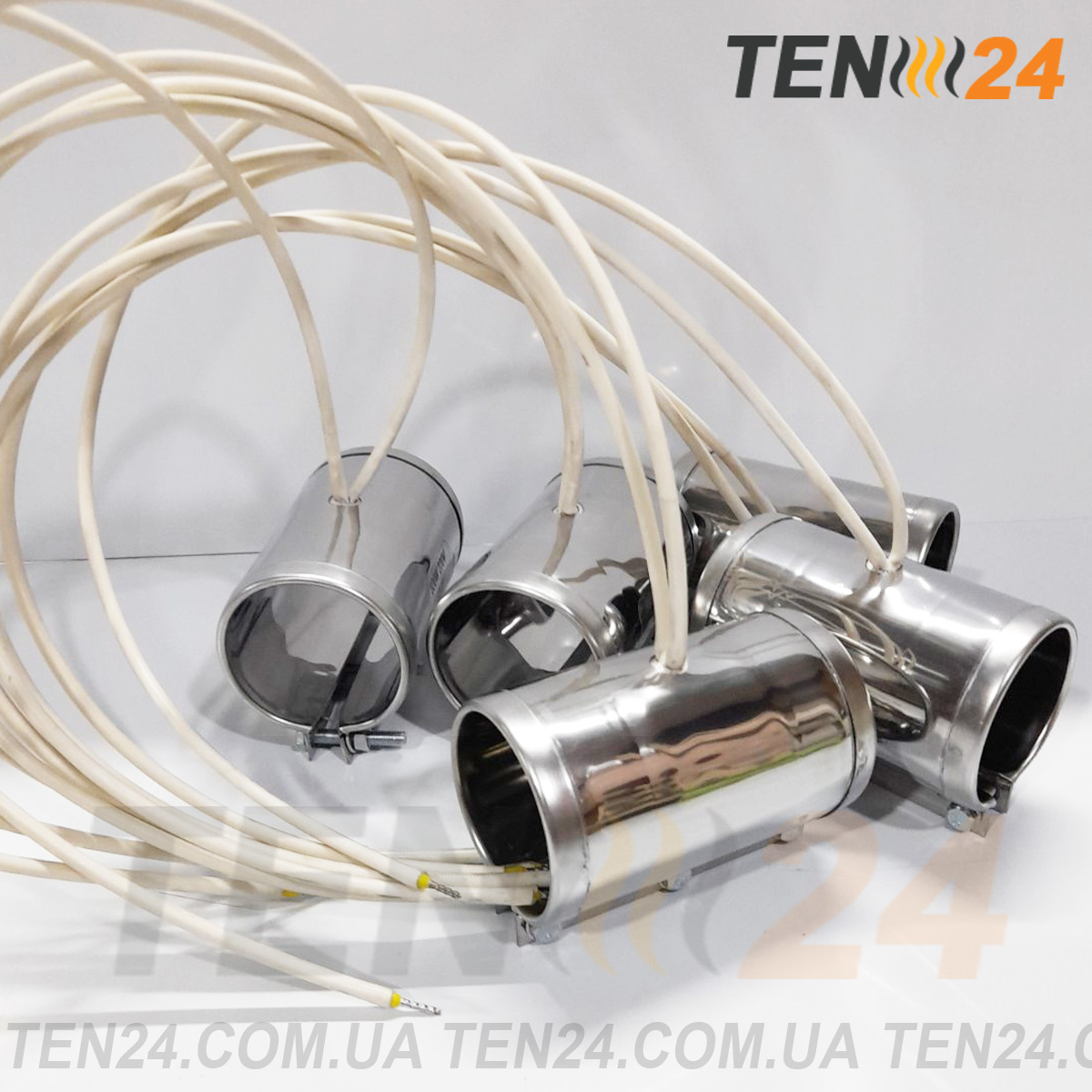

Mica Band Heaters photo 44 TEN24
Mica Band Heaters photo 44 TEN24
Mica Band Heaters photo 1 TEN24
Mica Band Heaters photo 2 TEN24
Mica Band Heaters photo 3 TEN24
Mica Band Heaters photo 4 TEN24
Mica Band Heaters photo 5 TEN24
Mica Band Heaters photo 6 TEN24
Mica Band Heaters photo 7 TEN24
Mica Band Heaters photo 8 TEN24
Mica Band Heaters photo 9 TEN24
Mica Band Heaters photo 10 TEN24
Mica Band Heaters photo 11 TEN24
Mica Band Heaters photo 12 TEN24
Mica Band Heaters photo 13 TEN24
Mica Band Heaters photo 14 TEN24
Mica Band Heaters photo 15 TEN24
Mica Band Heaters photo 16 TEN24
Mica Band Heaters photo 17 TEN24
Mica Band Heaters photo 18 TEN24
Mica Band Heaters photo 19 TEN24
Mica Band Heaters photo 20 TEN24
Mica Band Heaters photo 21 TEN24
Mica Band Heaters photo 22 TEN24
Mica Band Heaters photo 23 TEN24
Mica Band Heaters photo 24 TEN24
Mica Band Heaters photo 25 TEN24
Mica Band Heaters photo 26 TEN24
Mica Band Heaters photo 27 TEN24
Mica Band Heaters photo 28 TEN24
Mica Band Heaters photo 29 TEN24
Mica Band Heaters photo 30 TEN24
Mica Band Heaters photo 31 TEN24
Mica Band Heaters photo 32 TEN24
Mica Band Heaters photo 33 TEN24
Mica Band Heaters photo 34 TEN24
Mica Band Heaters photo 35 TEN24
Mica Band Heaters photo 36 TEN24
Mica Band Heaters photo 37 TEN24
Mica Band Heaters photo 38 TEN24
Mica Band Heaters photo 39 TEN24
Mica Band Heaters photo 40 TEN24
Mica Band Heaters photo 41 TEN24
Mica Band Heaters photo 42 TEN24
Mica Band Heaters photo 43 TEN24
Mica Band Heaters photo 44 TEN24

Mica Band Heaters are an inexpensive industrial heating solution that surrounds pipes and tubes hat require external indirect heating.

Band Heaters with mica insulation are used to heat various parts on industrial machines, often on plastic processing machines: injection molding machines, extruders.

  • Max power: 4W/cm2

  • Max operating temperature: 350°C

  • Minimum diameter (inner): 25mm

  • Maximum diameter (inner): 380 mm

  • Thickness with insulation: 3-4mm

  • Minimum width: 20 mm

  • Max width: 300 mm

  • Voltage: 12, 24, 48, 110, 220/230, 400V

  • Production time: from 1 day


The TEN 24 company can make custom Band Mica Heater for your needs and deliver it to any country of Europe.

Micanite Band Heaters are made from high resistance nickel-chromium wire wound on a base. Insulation in this type of heaters is a mica plate with high thermal insulation.

The TEN 24 company produces individual Band Heaters, so we can make a heating element taking into account all the design features of the heated surface. Mica-band heaters can be made with cutouts of any shape, with all kinds of fasteners and ties.

Applications

  • Injection molding
  • Blow-molding
  • Plastic extrusion
  • Container, pipe, or tank heating
  • Pharmaceutical applications
  • Applications in the food industry

Delivery

Mica Band Heaters can be delivered from Odessa (Ukraine) to European countries: Bulgaria, Germany, Austria, Slovakia, Czech Republic, France, Moldova, and others.

Specifications

Mic Band Heater

Minimum diameter (inner), mm

25

Maximum diameter (inner), mm

380

Thickness with insulation, mm

3-4

Мinimum width, mm

20

Мax width, mm

300

Power (max), W/cm2

4

Max operating temperature, °С

350

Voltage, V

12, 24, 48, 110, 220/230, 400


Mica Band Heaters video
ТЭН 24: Band Mica Heaters
Mica Band Heaters video
ТЭН 24: Band Mica Heaters
