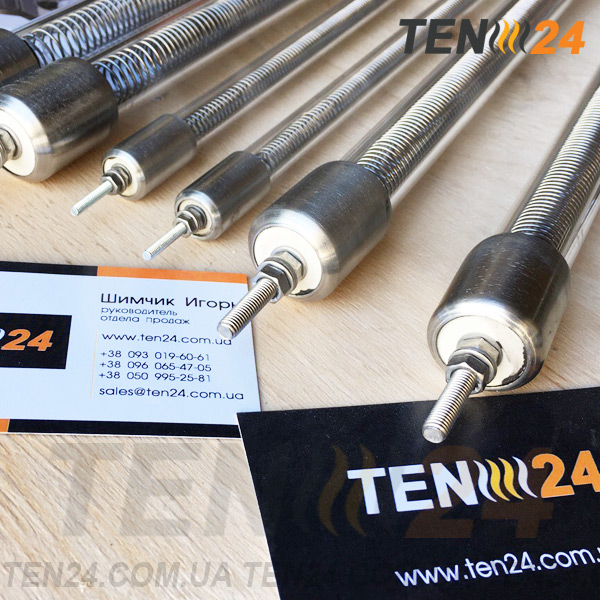

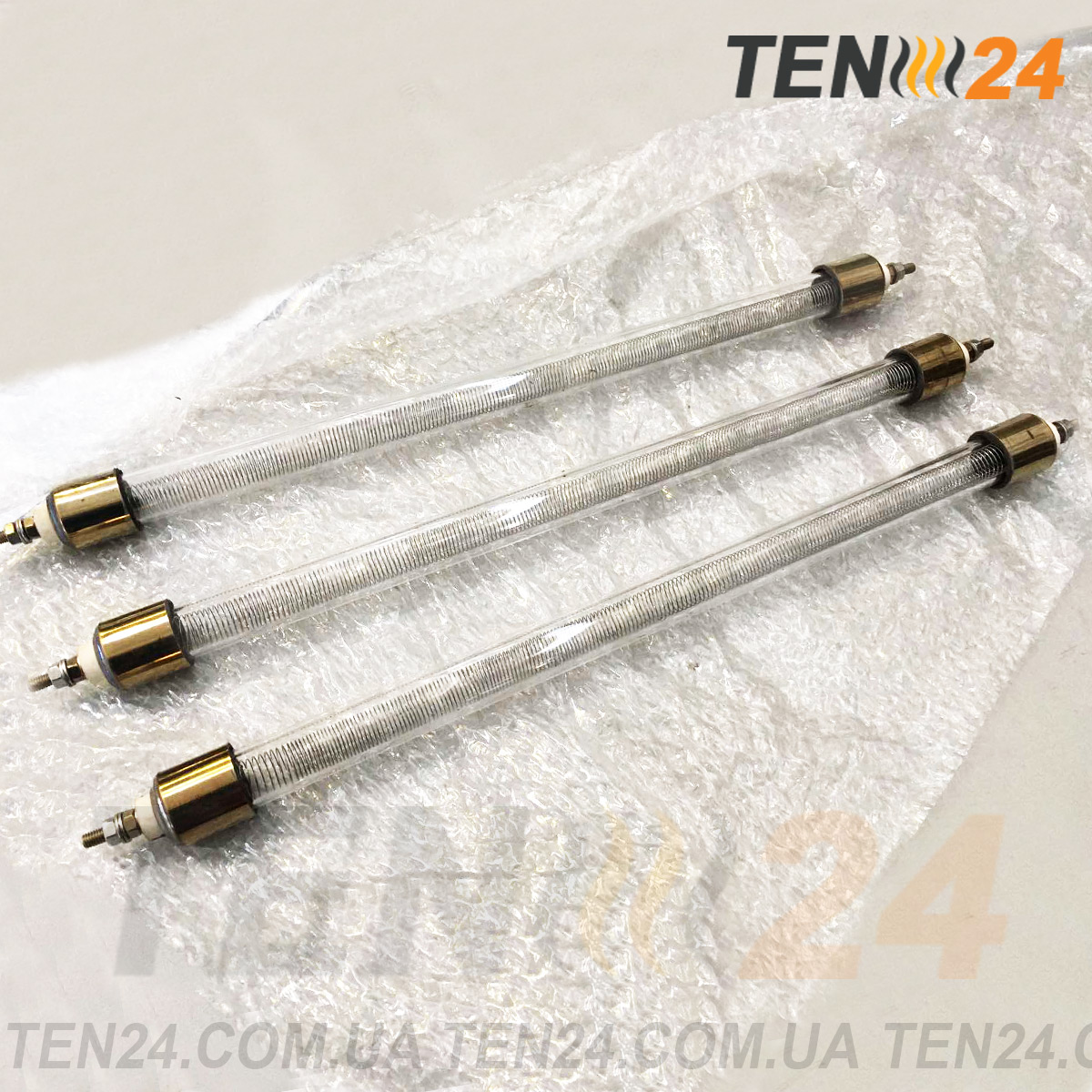

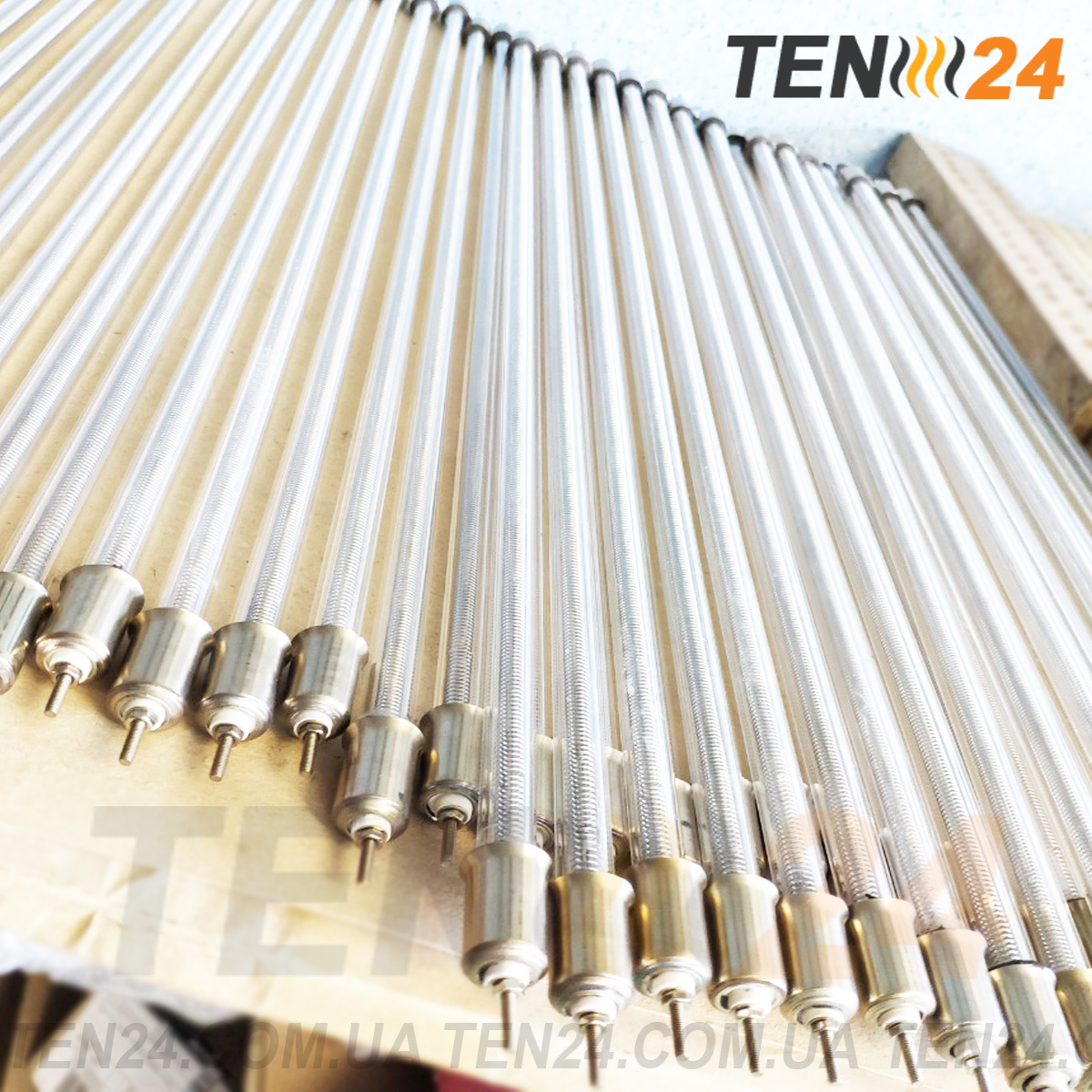

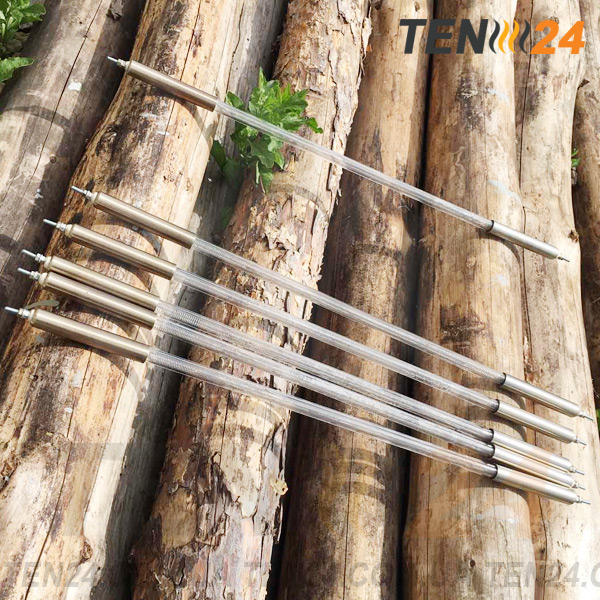

Tubular quartz IR heaters are a completely ready-to-install independent heating element that emits infrared waves from a resistive coil inside a quartz tube. On both sides of the tube there are contacts for connecting to the mains.
Quartz infrared heaters are used in infrared dryers, lavash ovens, forming tables, heaters, vacuum forming equipment and other production equipment where fast infrared heating and cooling is important.
Tube diameter: 8, 10, 12, 16, 20 mm
Tube length: 10 cm to 2 meters
Maximum length: 2000 mm (over 2000 mm on request)
Quartz tubular heaters are infrared spectrum emitters that heat surrounding surfaces without heating the air. The radiation emitted by the quartz tubes from TEN 24 occurs in the medium wave range.
Infrared quartz tubular heaters with a resistive coil inside quickly heat up upon activation, making them ideal as component heating elements for equipment operating in an intermittent or cyclic mode. This significantly saves electrical energy when operating industrial equipment. The most common applications for quartz tubes are vacuum and thermoforming machines, IR dryers, shrink equipment, and more.
You can order quartz tubes of the size you need on our TEN 24 website. Ordering is very easy - just leave your phone number in the feedback form, and we will contact you to clarify the details.

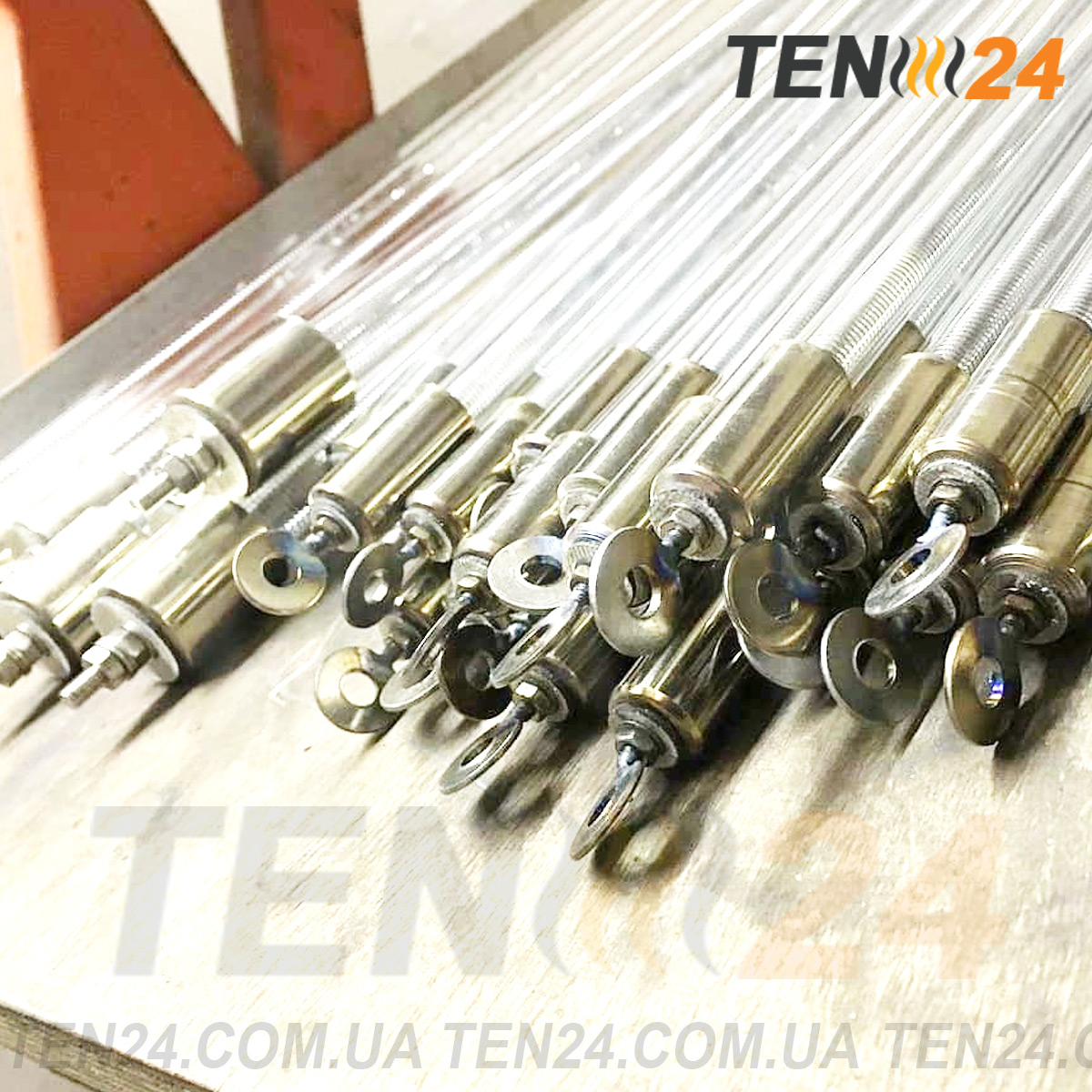

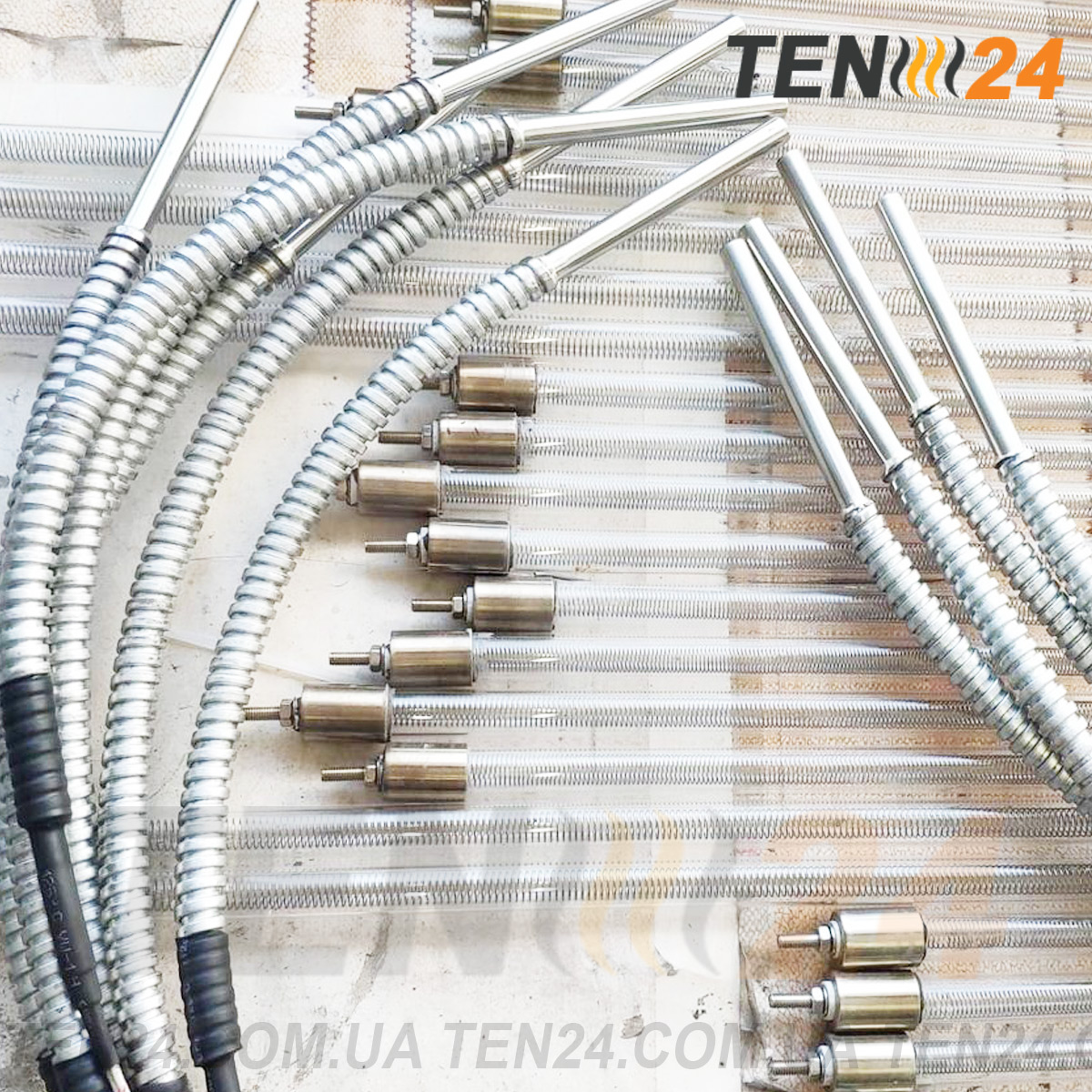

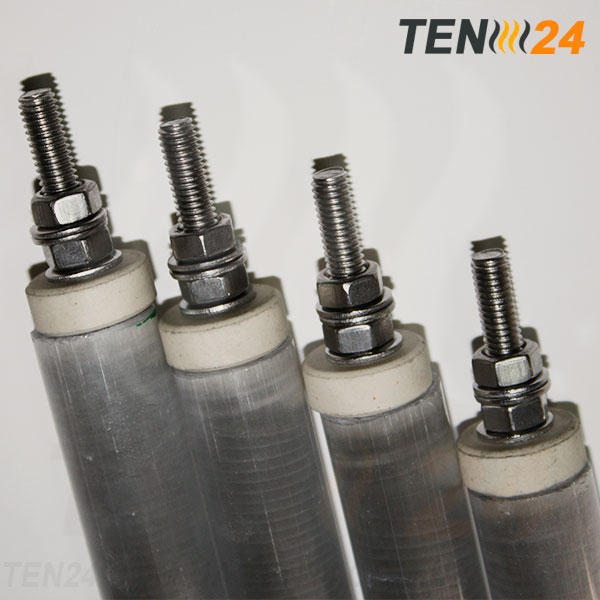

The connection to the power supply is located on both sides of the quartz tube. Alternatively, connection can be made with bolts or heat-resistant wires. The wires are additionally insulated with heat-resistant ceramic beads, which not only protect against damage but also do not limit the flexibility of the wire.
Quartz tubes are mainly installed in metal reflectors, which focus the radiation beams in a certain direction.
In the TEN 24 online store, you can buy tubular quartz emitters, quartz panels, or ceramic infrared emitters at favorable prices. You can find out the exact wholesale or retail price for emitters from our managers using the phone numbers listed on the Contacts page.
Delivery
Quartz tubular heaters (quartz heating elements) can be delivered from Odessa (Ukraine) to European countries: Bulgaria, Hungary, Germany, Austria, Romania, Slovakia, Poland, and others.
