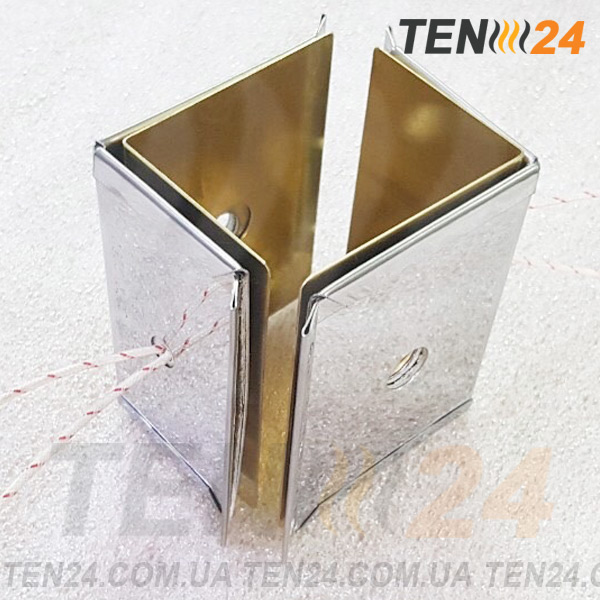

Mica Insulated Strip Heater photo 9 TEN24
Mica Insulated Strip Heater photo 9 TEN24
Mica Insulated Strip Heater photo 10 TEN24
Mica Insulated Strip Heater photo 10 TEN24
Mica Insulated Strip Heater photo 11 TEN24
Mica Insulated Strip Heater photo 11 TEN24
Mica Insulated Strip Heater photo 12 TEN24
Mica Insulated Strip Heater photo 12 TEN24
Mica Insulated Strip Heater photo 13 TEN24
Mica Insulated Strip Heater photo 13 TEN24

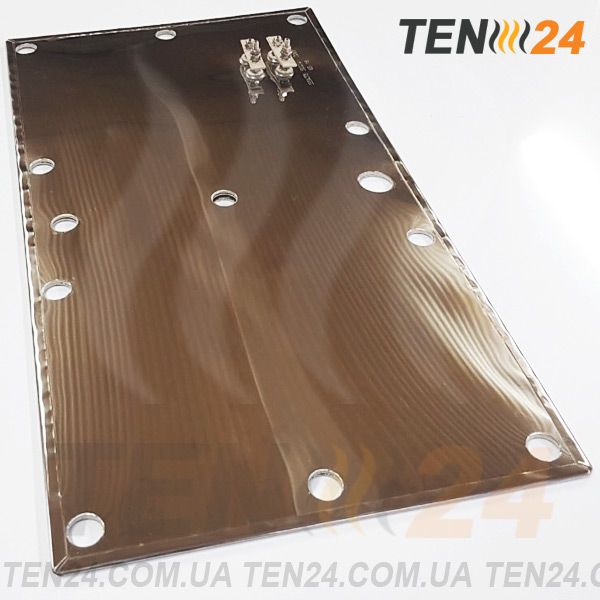

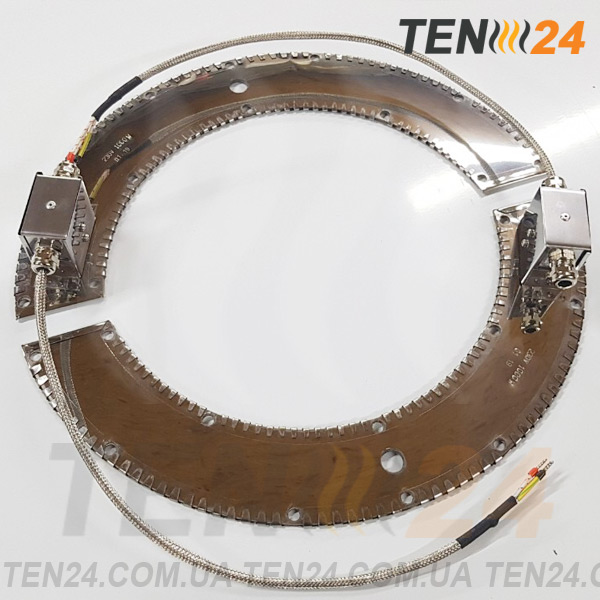

Mica Insulated Strip Heater photo 14 TEN24
Mica Insulated Strip Heater photo 14 TEN24
Mica Insulated Strip Heater photo 15 TEN24
Mica Insulated Strip Heater photo 15 TEN24

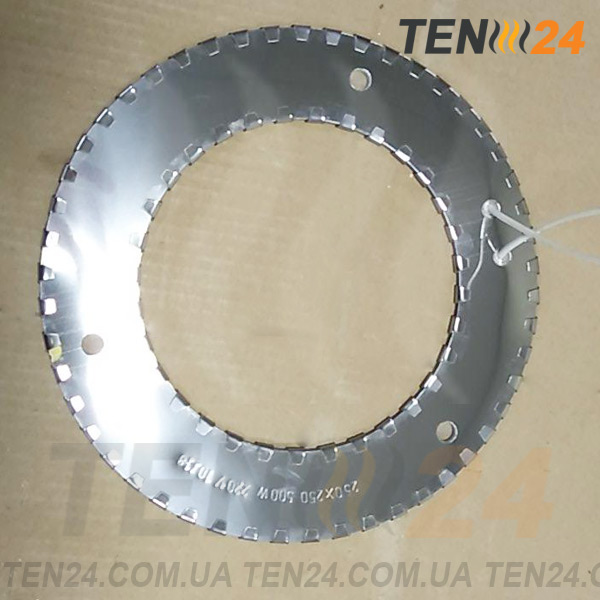

Mica Insulated Strip Heater photo 16 TEN24
Mica Insulated Strip Heater photo 16 TEN24

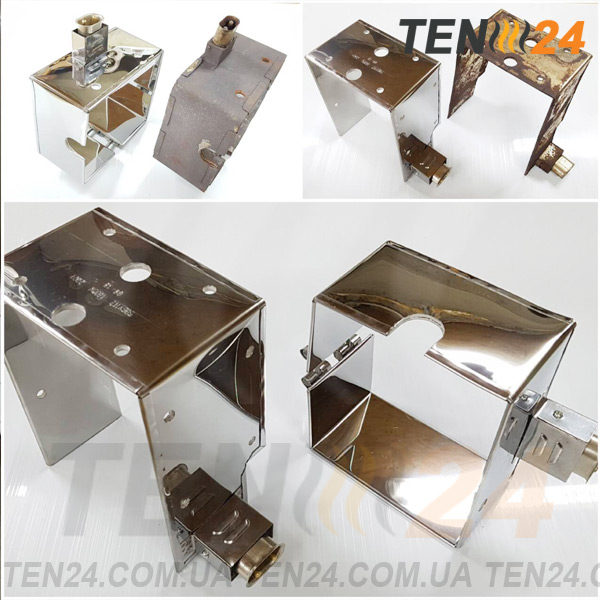

Mica Insulated Strip Heater photo 17 TEN24
Mica Insulated Strip Heater photo 17 TEN24
Mica Insulated Strip Heater photo 18 TEN24
Mica Insulated Strip Heater photo 18 TEN24
Mica Insulated Strip Heater photo 19 TEN24
Mica Insulated Strip Heater photo 19 TEN24

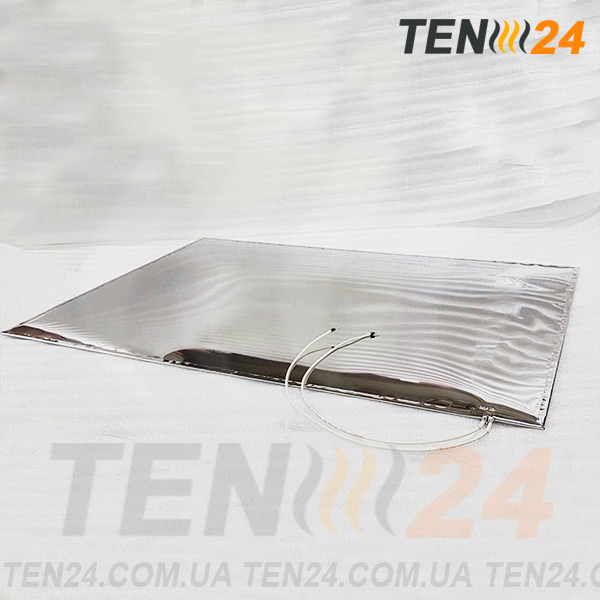

Mica Insulated Strip Heater photo 20 TEN24
Mica Insulated Strip Heater photo 20 TEN24
Металлические плоские нагреватели с клеммными колодками от ТЭН 24
Металлические плоские нагреватели с клеммными колодками от ТЭН 24
Mica Insulated Strip Heater photo 22 TEN24
Mica Insulated Strip Heater photo 22 TEN24

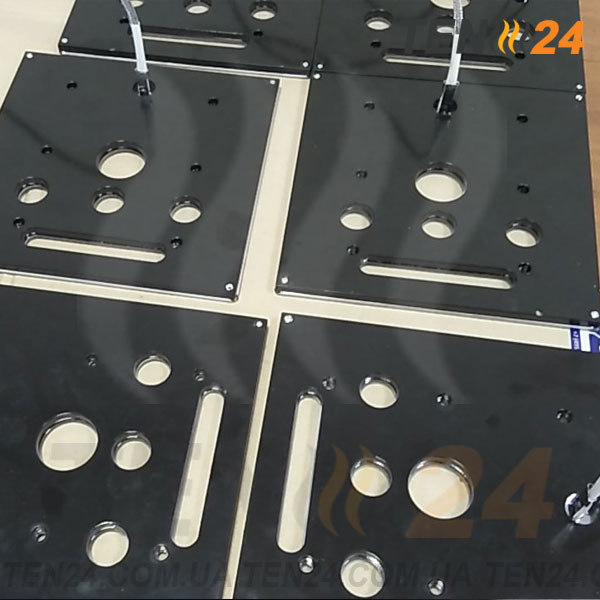

Mica Insulated Strip Heater photo 23 TEN24
Mica Insulated Strip Heater photo 23 TEN24
Mica Insulated Strip Heater photo 24 TEN24
Mica Insulated Strip Heater photo 24 TEN24
Mica Insulated Strip Heater photo 25 TEN24
Mica Insulated Strip Heater photo 25 TEN24

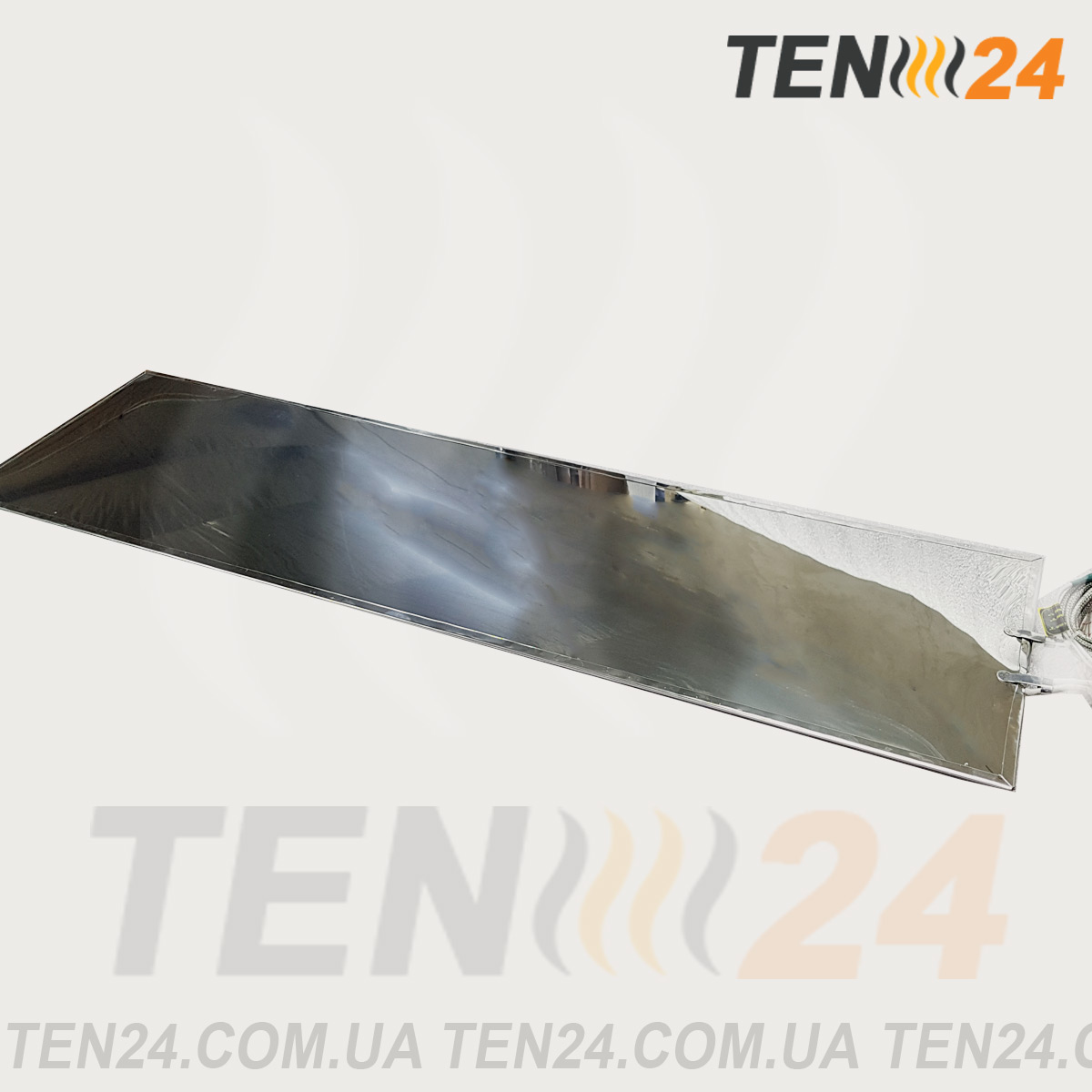

Mica Insulated Strip Heater photo 26 TEN24
Mica Insulated Strip Heater photo 26 TEN24
Mica Insulated Strip Heater photo 27 TEN24
Mica Insulated Strip Heater photo 27 TEN24
Mica Insulated Strip Heater photo 28 TEN24
Mica Insulated Strip Heater photo 28 TEN24

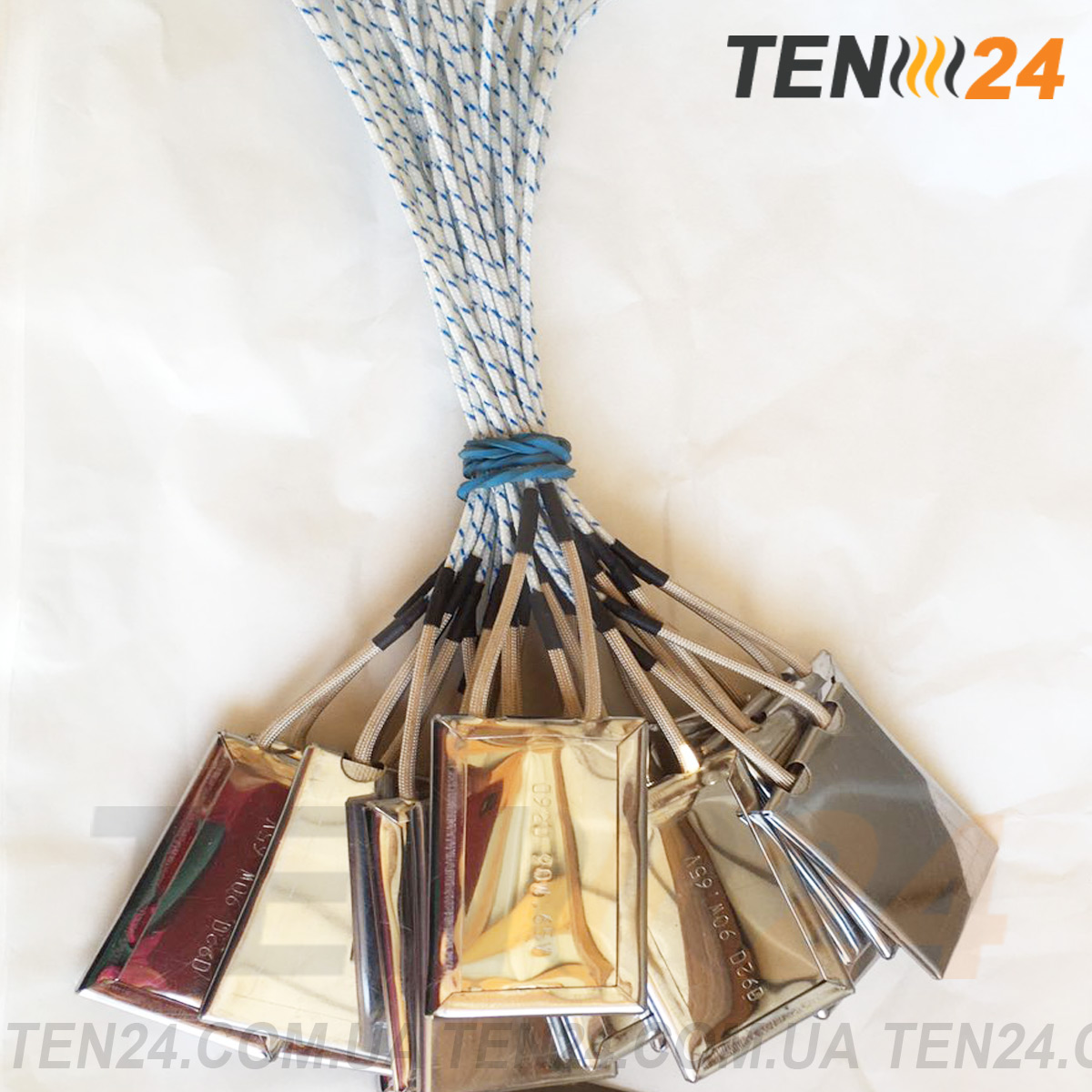

Mica Insulated Strip Heater photo 29 TEN24
Mica Insulated Strip Heater photo 29 TEN24
Mica Insulated Strip Heater photo 30 TEN24
Mica Insulated Strip Heater photo 30 TEN24
Mica Insulated Strip Heater photo 1 TEN24
Mica Insulated Strip Heater photo 2 TEN24
Mica Insulated Strip Heater photo 3 TEN24
Mica Insulated Strip Heater photo 4 TEN24
Mica Insulated Strip Heater photo 5 TEN24
Mica Insulated Strip Heater photo 6 TEN24
Mica Insulated Strip Heater photo 7 TEN24
Mica Insulated Strip Heater photo 8 TEN24
Mica Insulated Strip Heater photo 9 TEN24
Mica Insulated Strip Heater photo 10 TEN24
Mica Insulated Strip Heater photo 11 TEN24
Mica Insulated Strip Heater photo 12 TEN24
Mica Insulated Strip Heater photo 13 TEN24
Mica Insulated Strip Heater photo 14 TEN24
Mica Insulated Strip Heater photo 15 TEN24
Mica Insulated Strip Heater photo 16 TEN24
Mica Insulated Strip Heater photo 17 TEN24
Mica Insulated Strip Heater photo 18 TEN24
Mica Insulated Strip Heater photo 19 TEN24
Mica Insulated Strip Heater photo 20 TEN24
Металлические плоские нагреватели с клеммными колодками от ТЭН 24
Mica Insulated Strip Heater photo 22 TEN24
Mica Insulated Strip Heater photo 23 TEN24
Mica Insulated Strip Heater photo 24 TEN24
Mica Insulated Strip Heater photo 25 TEN24
Mica Insulated Strip Heater photo 26 TEN24
Mica Insulated Strip Heater photo 27 TEN24
Mica Insulated Strip Heater photo 28 TEN24
Mica Insulated Strip Heater photo 29 TEN24
Mica Insulated Strip Heater photo 30 TEN24

Mica Strip Heaters are an economical and reliable heating solution that can provide even heat transfer to flat surfaces. Mica insulated flat heaters can be used in a variety of industrial heating applications.

  • Maximum watt density: 4W/cm2,

  • Maximum length: 1000 mm

  • Heater Width: 20-1000mm

  • Heater length: 60-1000mm

  • Heater thickness: 3-4mm


Production time: 1-3 days.

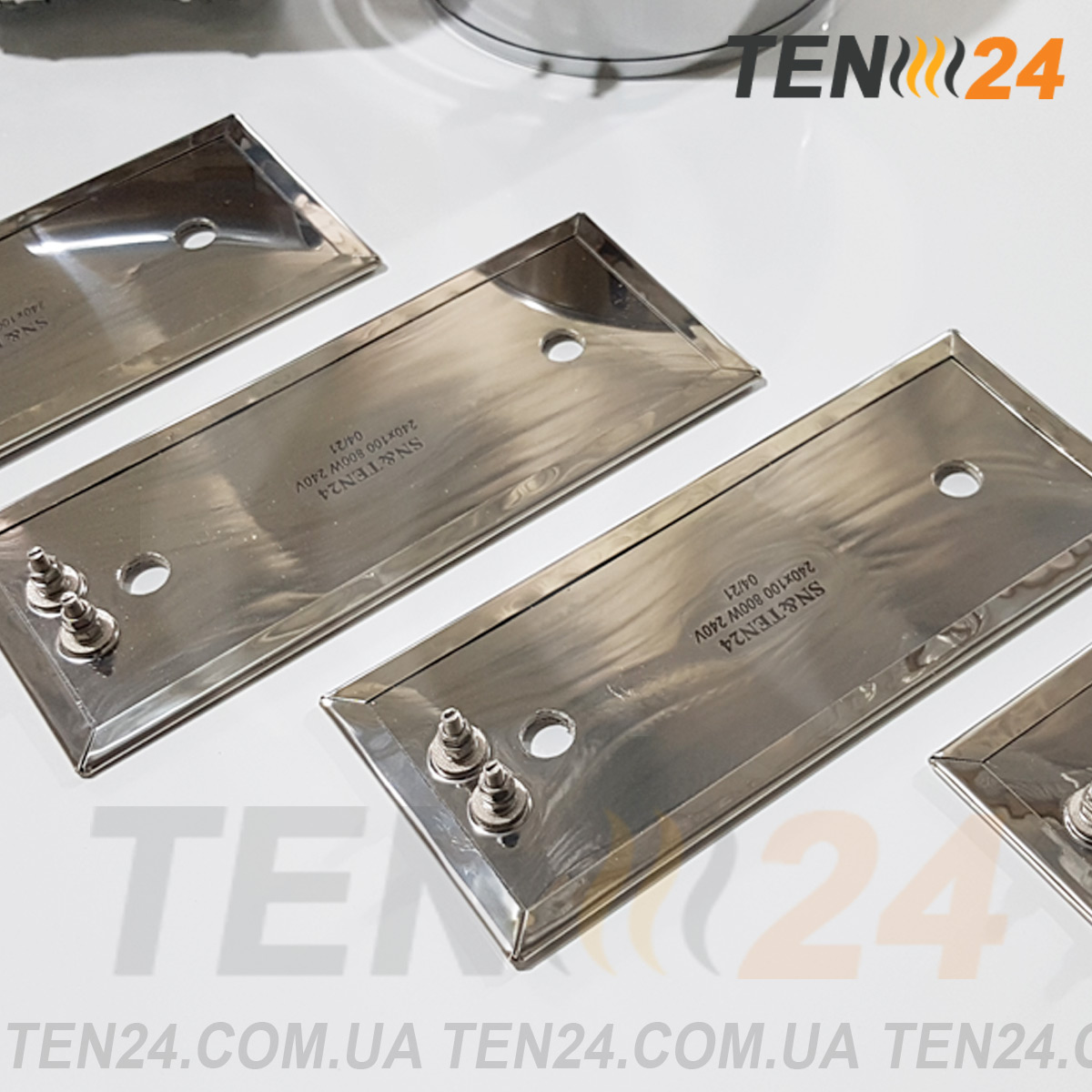

Mica flat heaters contain a high-resistance metal heating tape wound around the base and insulated with dense mica sheets that provide excellent electrical insulation. Such a mica flat heater is placed in a stainless steel metal shell.

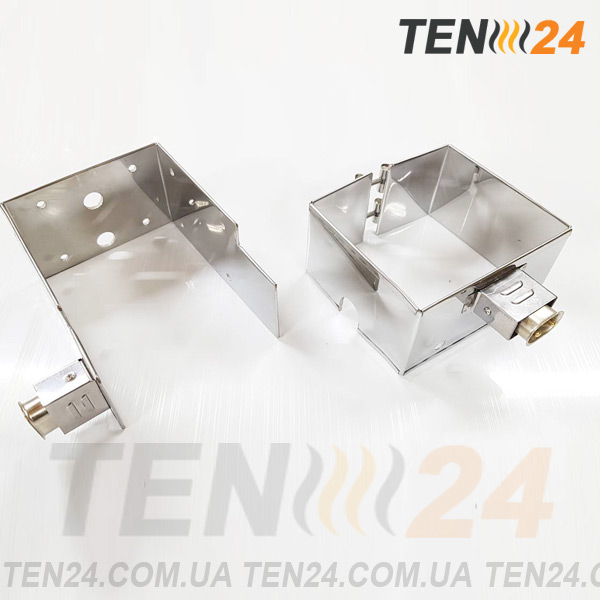

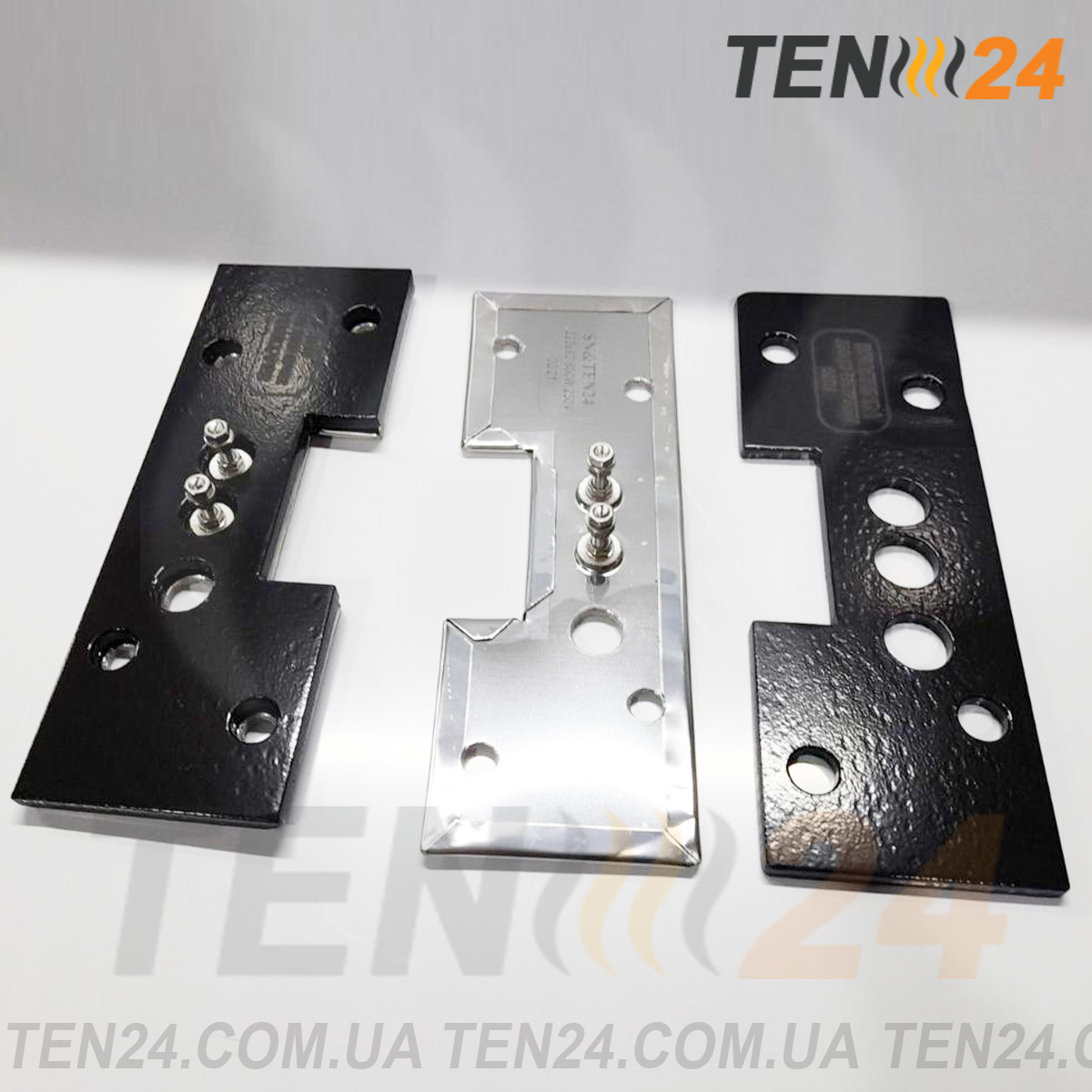

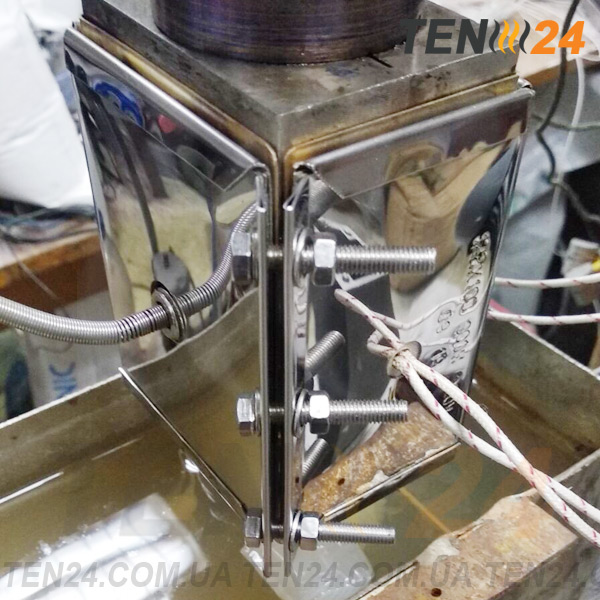

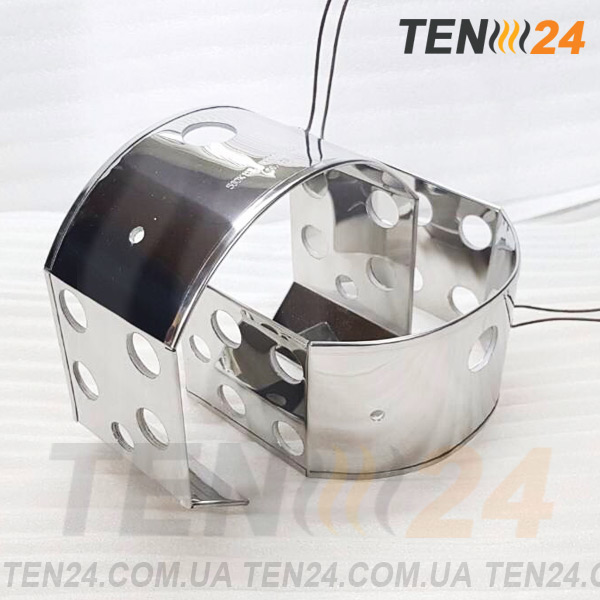

Various holes can be cut out in flat heaters, all kinds of elements of ties and fasteners are placed on the body. To heat multiple planes in application, you can create an angled strip heater or a heater system consisting of several combined mica strip heaters.

Installation of flat metal heaters should be carried out using special thermal paste for high temperatures, since for this type of heating elements the most dense and uniform contact with the surface is very important, and mounting paste eliminates small surface gaps and promotes better heat transfer.

Applications:

  • Packaging and sealing equipment
  • Surface heating
  • Food warming equipment
  • Dies
  • Molds
  • Tanks
  • Drying equipment
  • Thermoforming
  • Extruders
  • Injection molding machines

You can find out the exact price and buy Mica insulated Flat Heaters by e-mail, the order form, and also by phone. Or just leave your phone number at the site order and we will immediately call you back to clarify all the details. We carry out delivery to any country of Europe.

Delivery

Mica Insulated Strip Heater can be delivered from Odessa (Ukraine) to European countries: Germany, Austria, Slovakia, Czech Republic, France, Poland, Moldova, and others.

Specifications

Mica Strip Heater

Heater Width, mm

20-1000

Heater Length, mm

60-1000

Heater thickness, mm

3-4

Maximum Watt Density, W/cm2

4

Temperature, °С

350

Voltage, V

12, 24, 48, 110, 220/230, 400
