The Band Heater with air vented cooling jacket is used for precise temperature control of the heating element in industrial processes that require rapid heating and cooling. Mainly used in extrusion equipment.

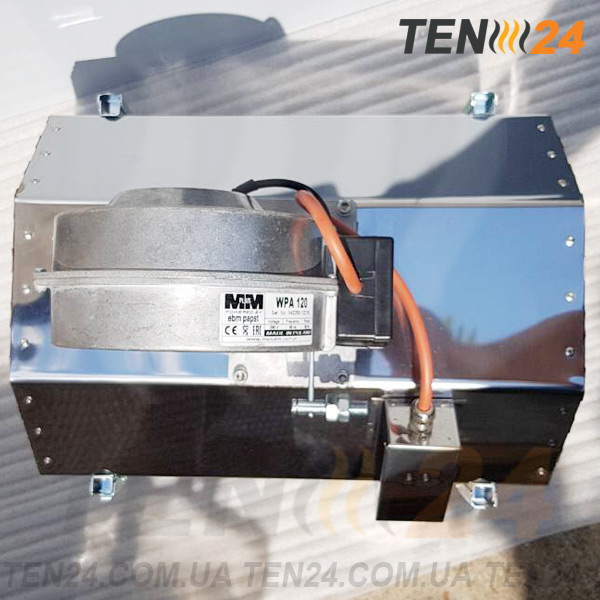

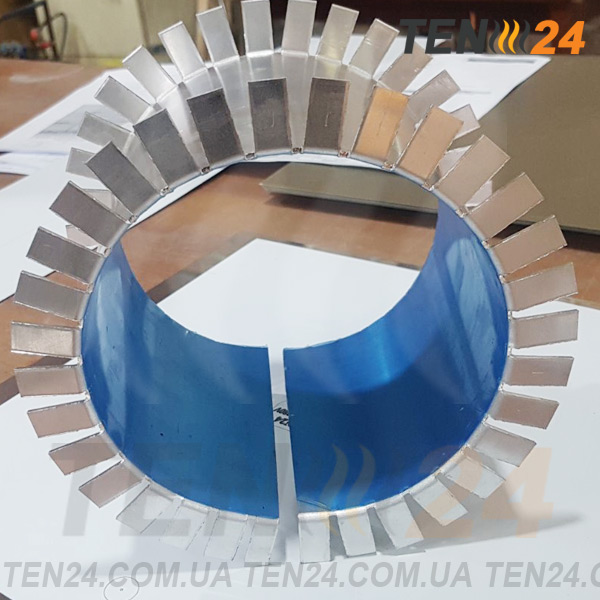

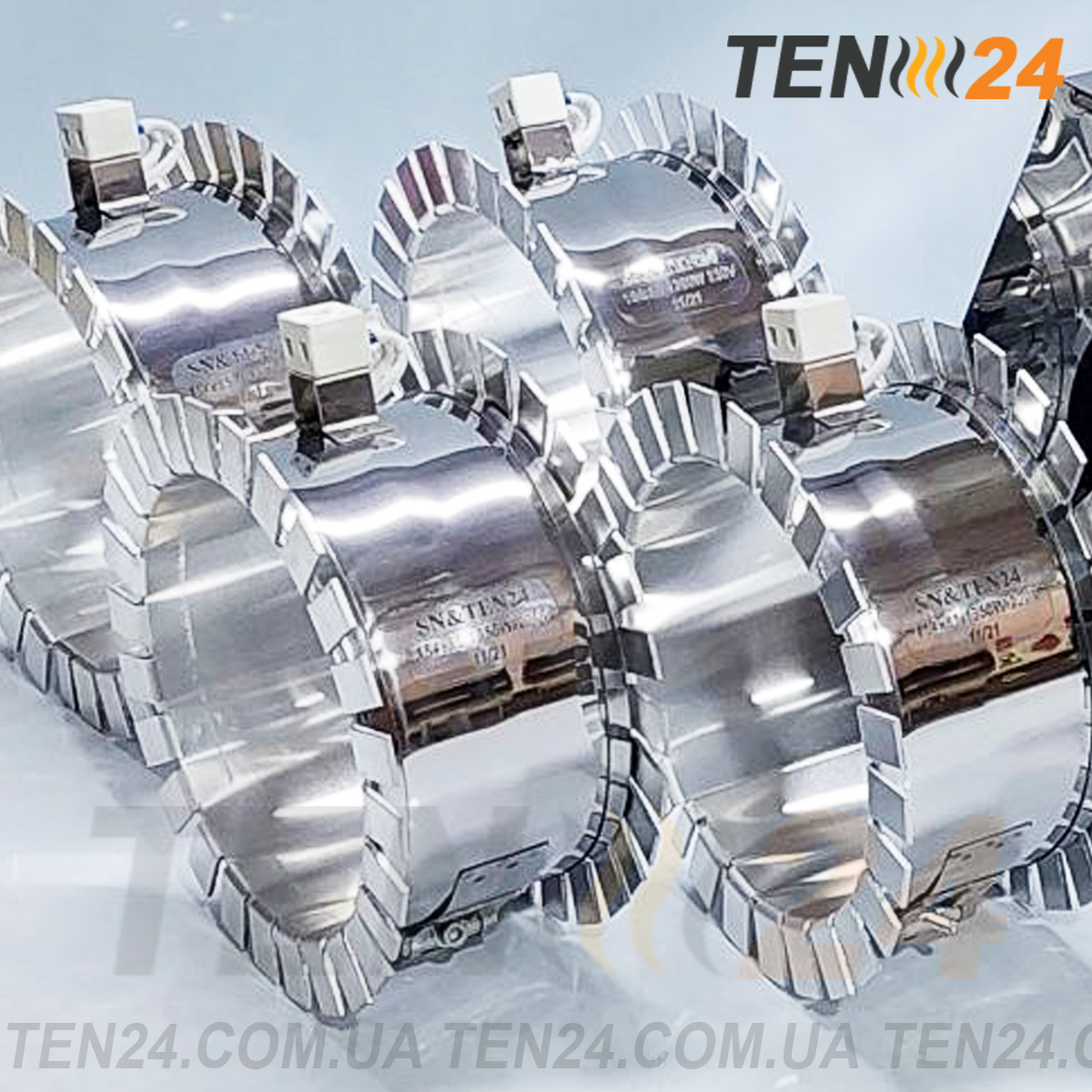

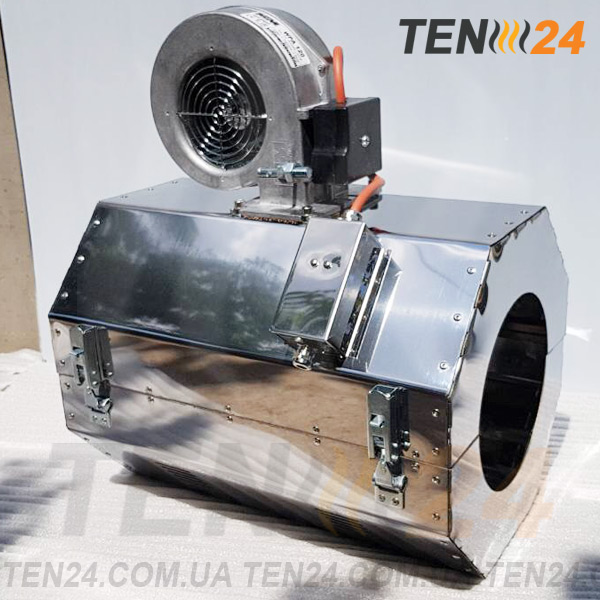

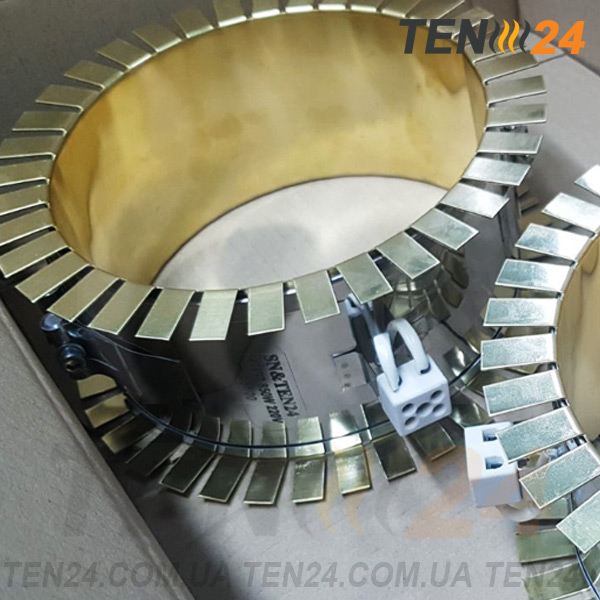

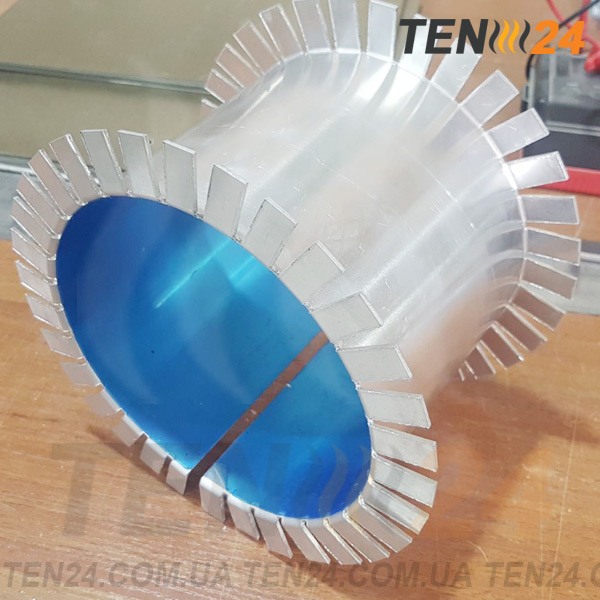

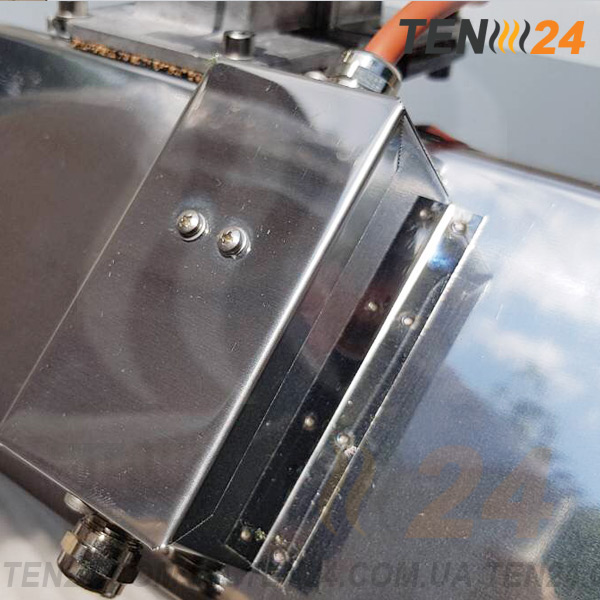

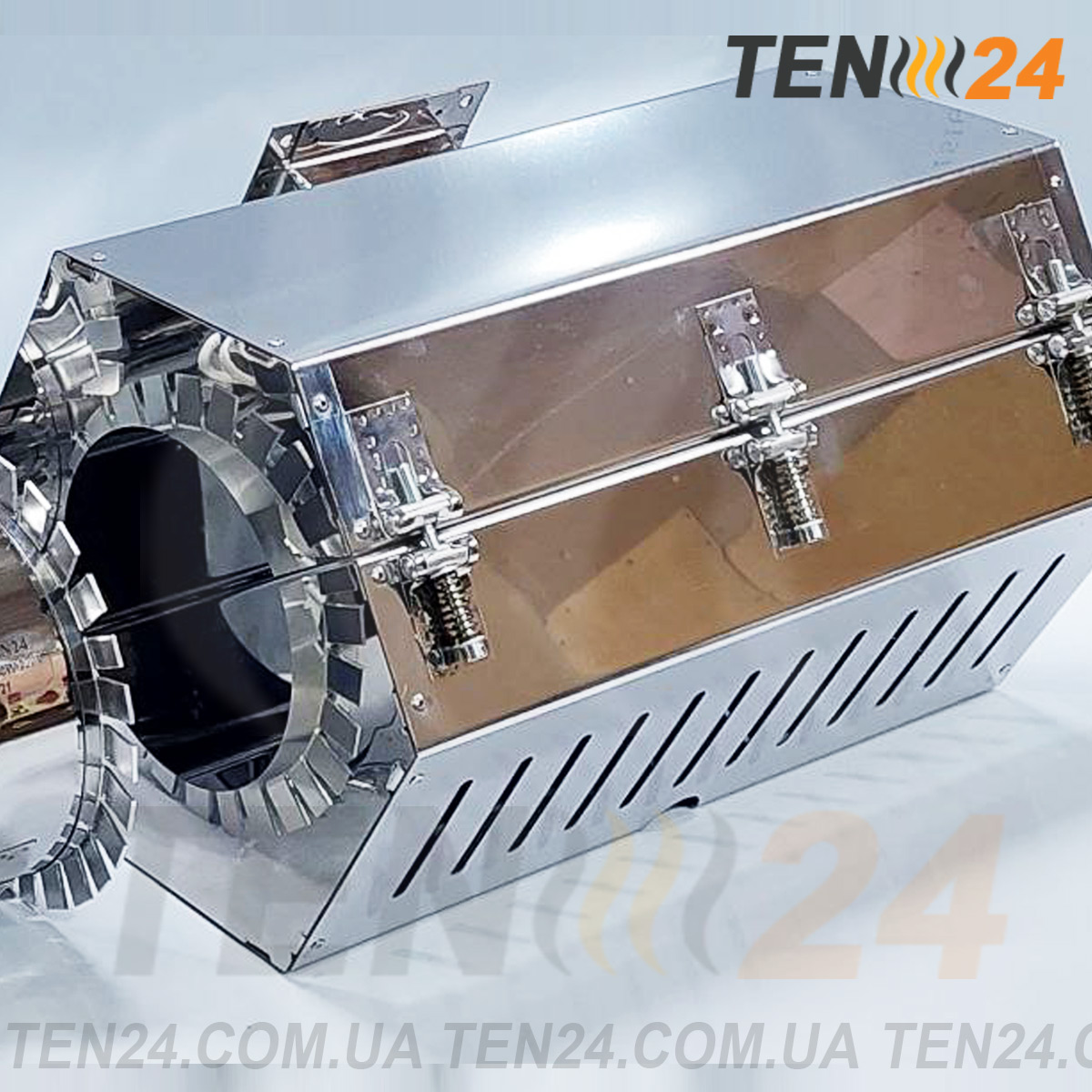

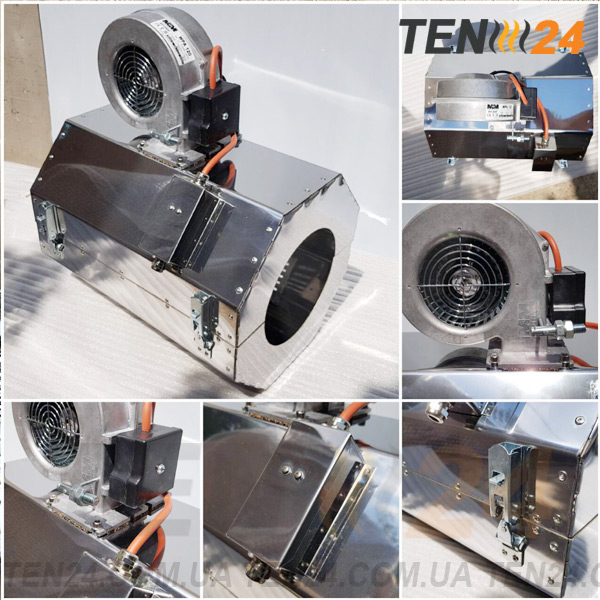

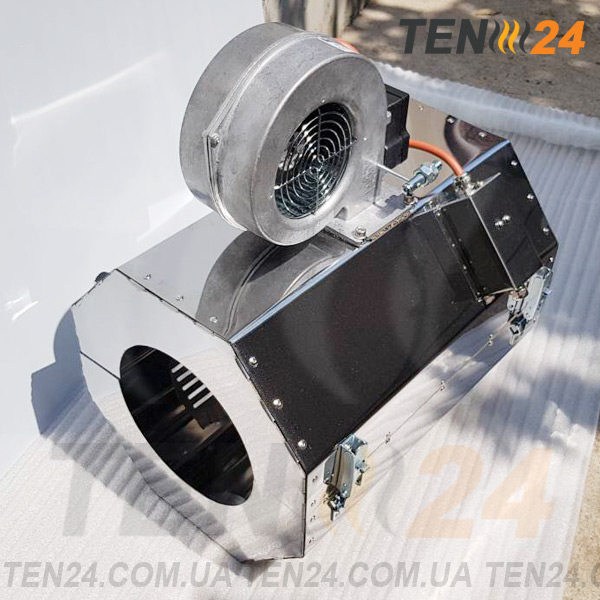

The cooling system for band heaters consists of a stainless steel outer shell, sheet metal cooling elements acting as a heatsink, and a fan that creates forced airflow and rapid cooling of the heating element.
Insulation: mica, ceramic
Heating temperature: 350-500°C
For precise and uniform heating of your equipment, TEN24's air-cooled ring heaters are the perfect solution. Our heaters are equipped with a cooling system that not only cools down the heating element but also prevents overheating and ensures temperature uniformity.
Design and Construction

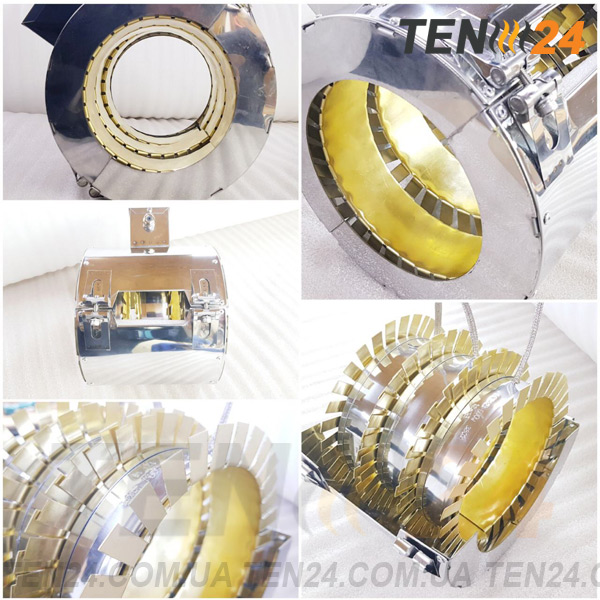

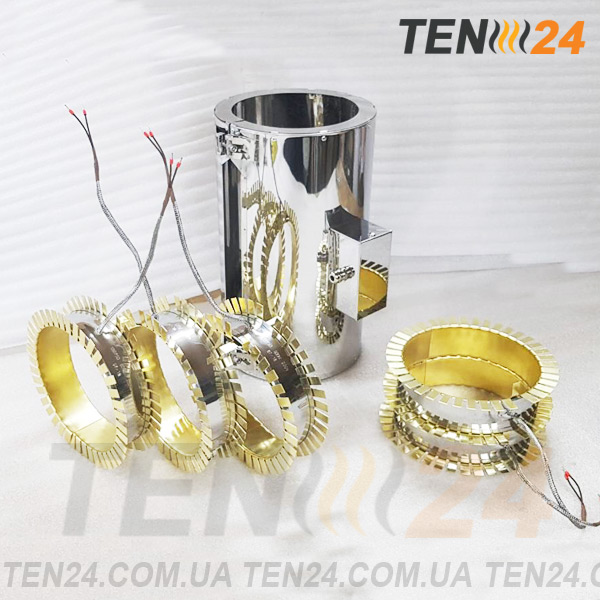

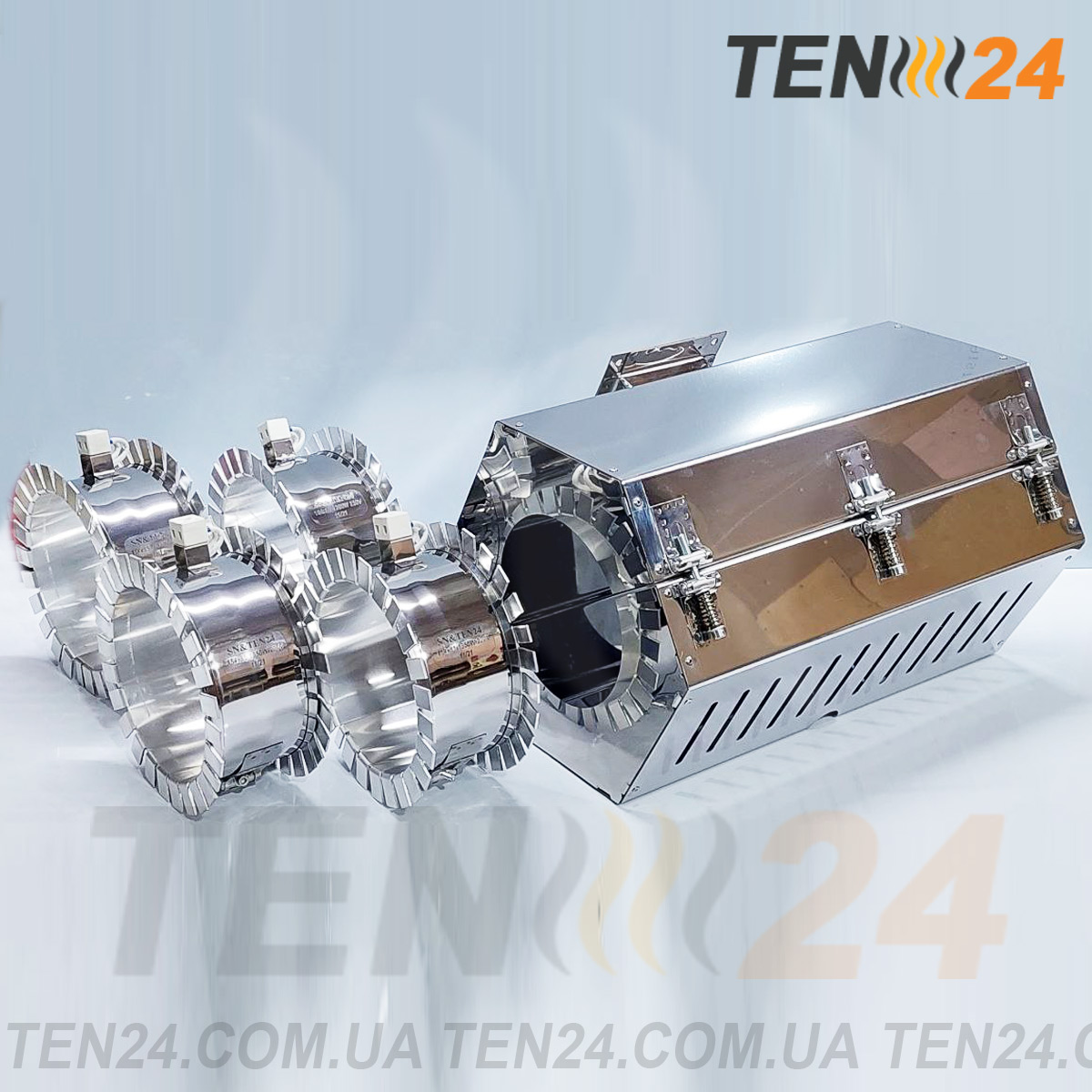

Our air-cooled band heaters consist of a stainless steel outer shell, sheet metal cooling elements that act as a heatsink, and a fan that generates forced airflow for rapid cooling of the heating element. The cooling system design remains the same for both ceramic and micanite annular heating elements.
Temperature Range
Our clamp heaters come with either ceramic or micanite insulation, depending on the required temperature range. Ceramic annular heaters can operate at a maximum temperature of 500°C, while micanite annular heating elements can reach a maximum temperature of 350°C.
Customization and Ordering
At TEN24, we understand that each customer's requirements are unique, and therefore we offer made-to-order air-cooled ring heaters with individual characteristics. You can easily order our products through our website's online order form or by calling us directly at +38 093 019-60-61 or +38 050 995-25-81.
If you only require a cooling system for your existing heater, we can provide you with a customized solution. Simply contact us via phone or our website to place your order.
Fast Production and Delivery
We take pride in delivering our products in a timely manner. The production time for our air-cooled ring heaters is just two days, ensuring that you receive your order as quickly as possible.
Invest in TEN24's air-cooled band heaters for reliable and efficient heating of your equipment. Our team is always ready to assist you with any questions or concerns. Contact us today to place your order!
Delivery
Air-Cooled Band Heater can be delivered from Odessa (Ukraine) to European countries: Bulgaria, Austria, Romania, Slovakia, France, Poland, Moldova, and others.
|
Air-Cooled Band Mica Heaters |
|
|---|---|
|
Inner Diameter (min), mm |
25 |
|
Inner Diameter (max), mm |
380 |
|
Thickness, mm |
3-4 |
|
Width (min), mm |
20 |
|
Width (max), mm |
300 |
|
Power (max), W/sm2 |
4 |
|
Temperature, °С |
350 |
|
Voltage, V |
12, 24, 48, 110, 220/230, 400 |
|
Air-Cooled Band Ceramic Heaters |
|
|---|---|
|
Inner Diameter (min), mm |
60 |
|
Inner Diameter (max), mm |
1000 |
|
Thickness, mm |
12 |
|
Width (min), mm |
30 |
|
Width (max), mm |
500 |
|
Power (max), W/sm2 |
9 |
|
Temperature, °С |
500 |
|
Voltage, V |
12, 24, 48, 110, 220/230, 400 |
