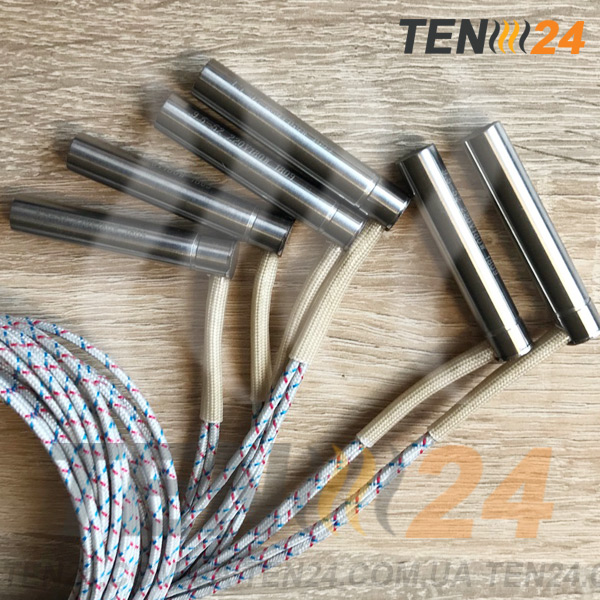

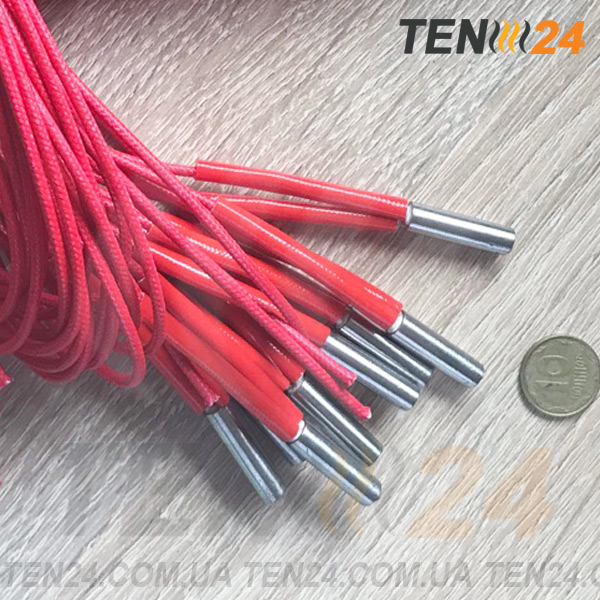

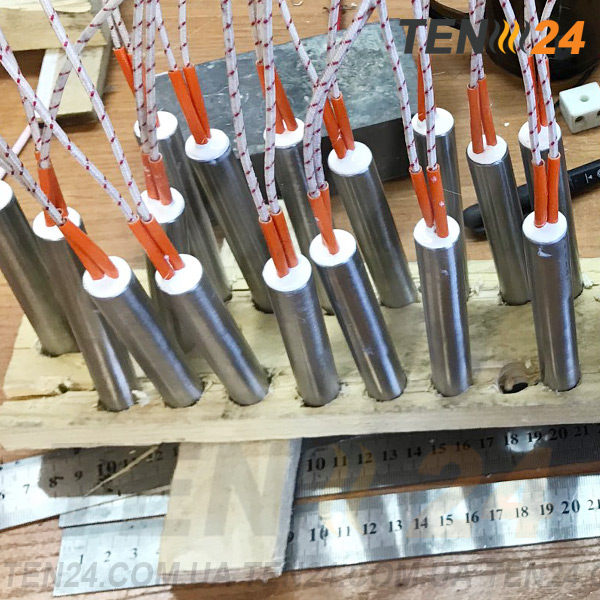

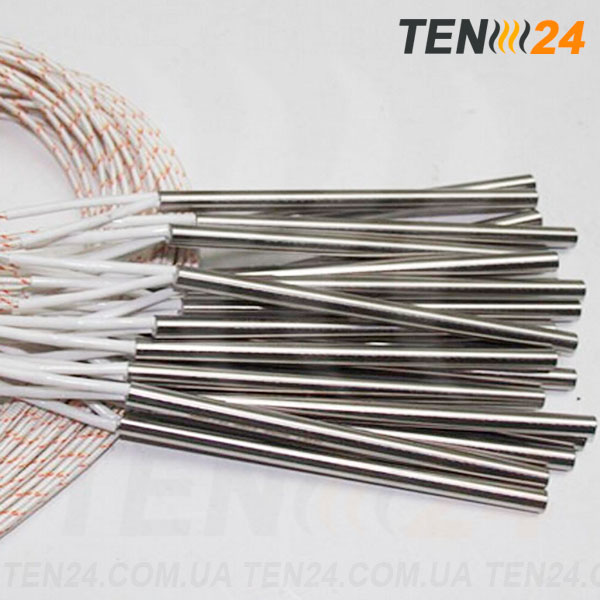

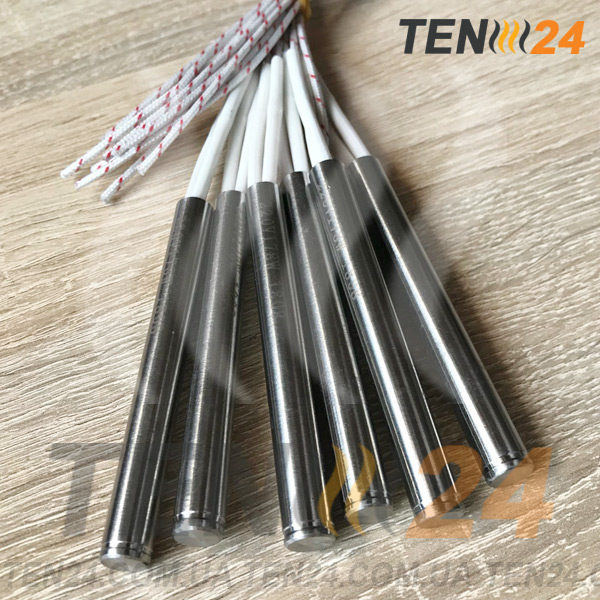

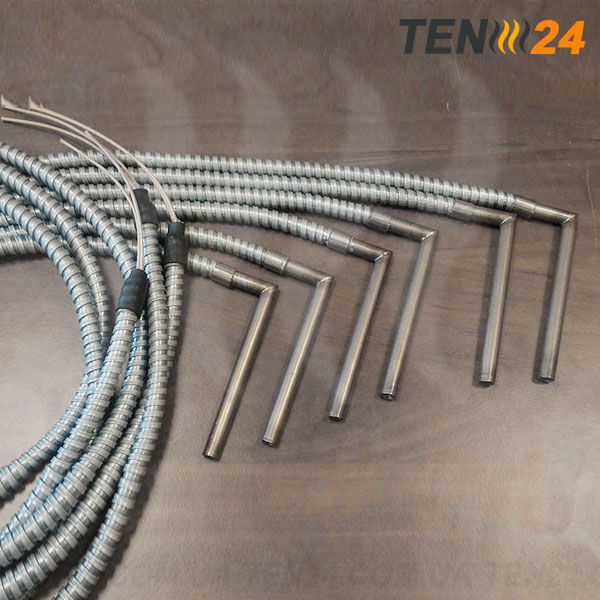

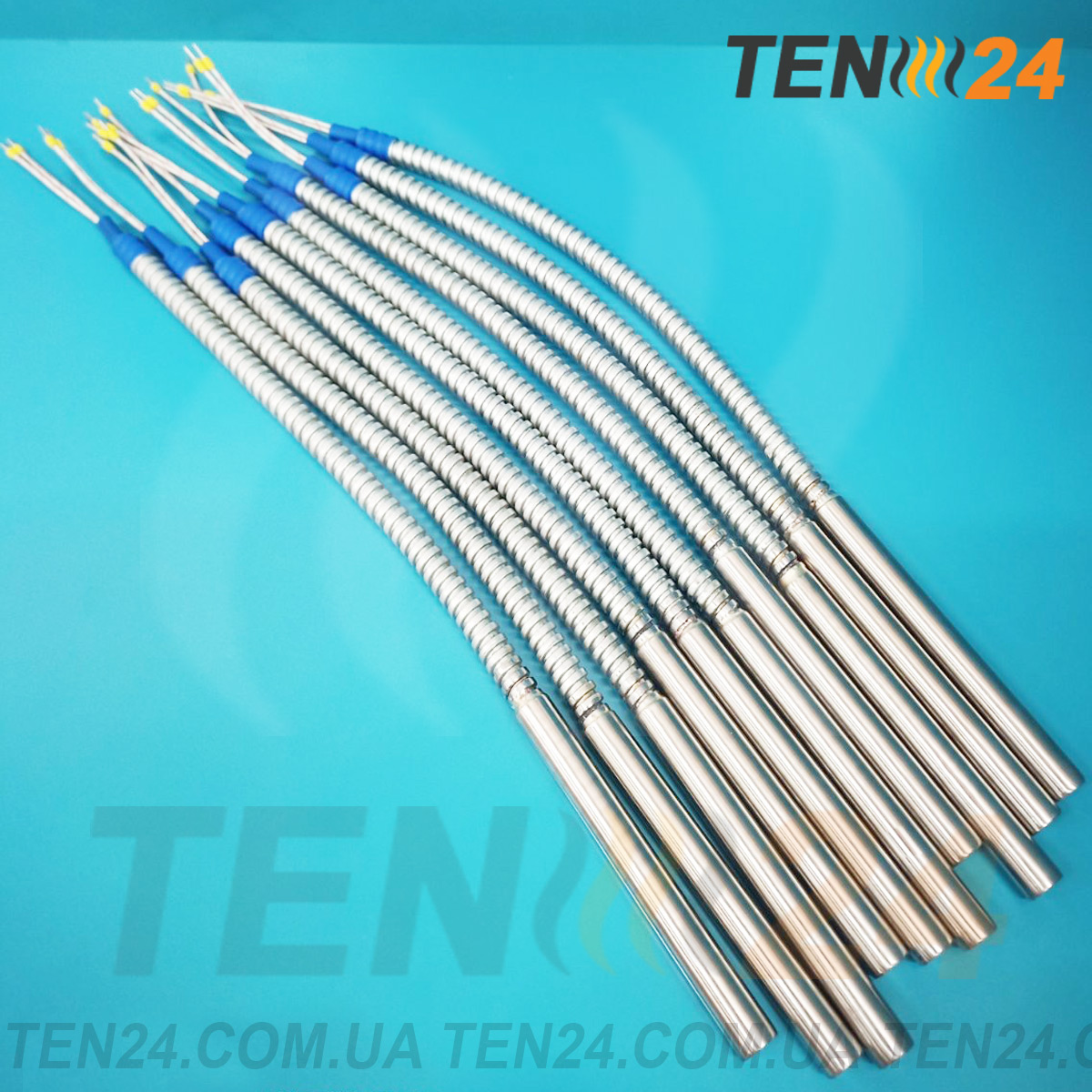

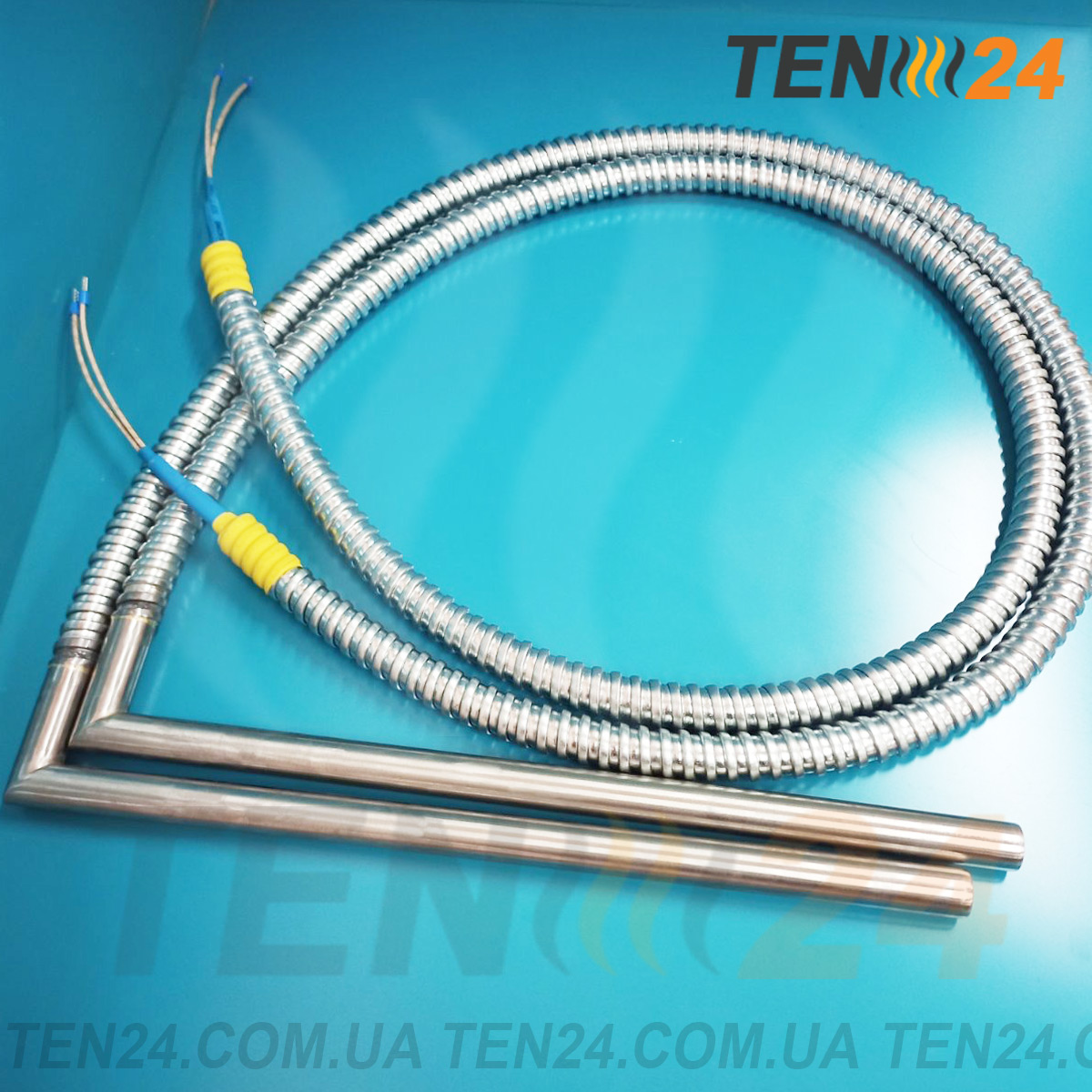

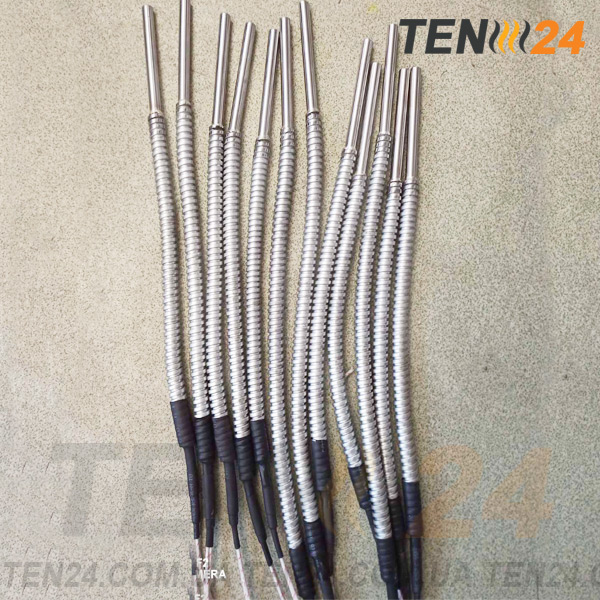

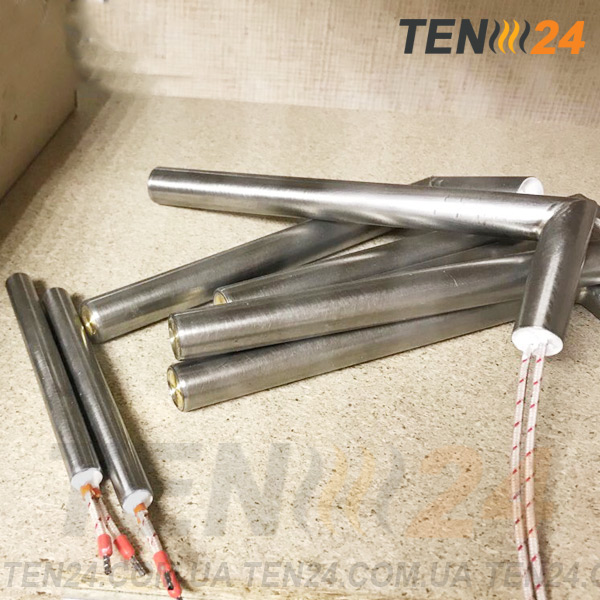

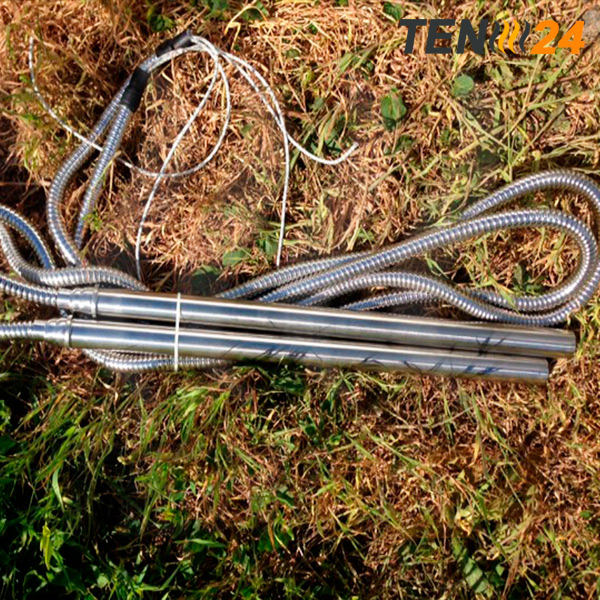

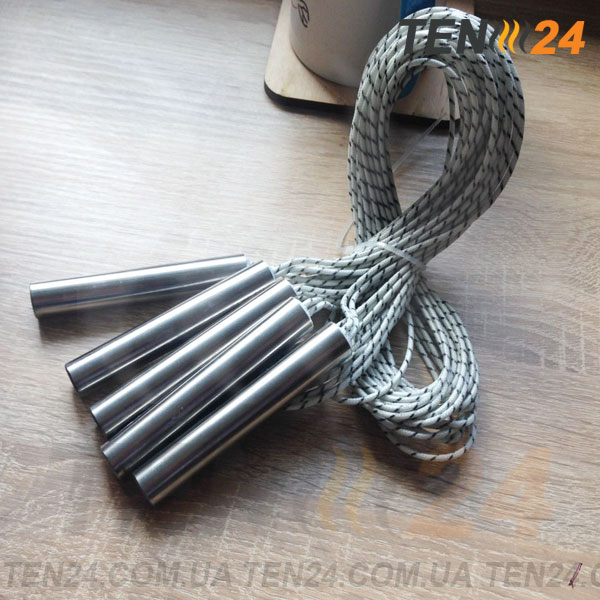

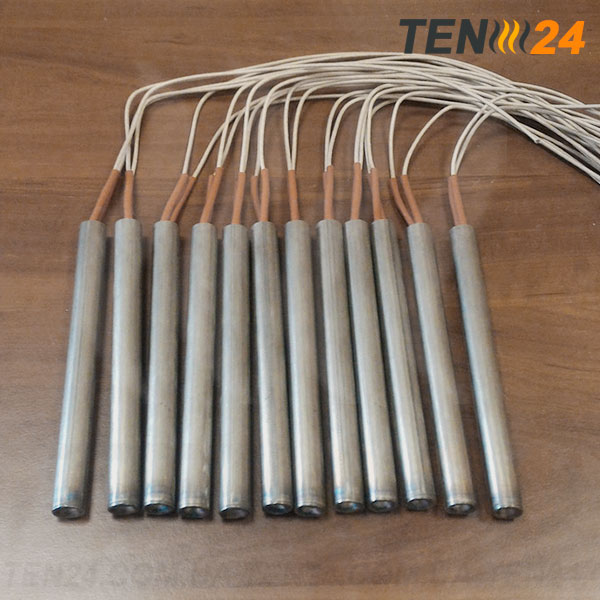

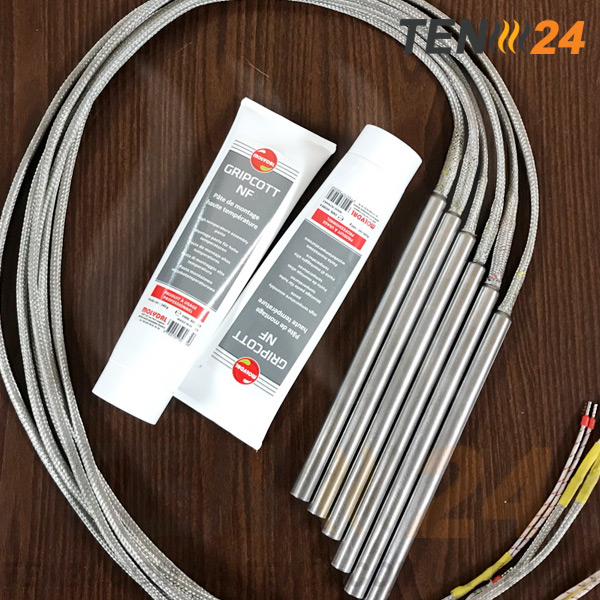

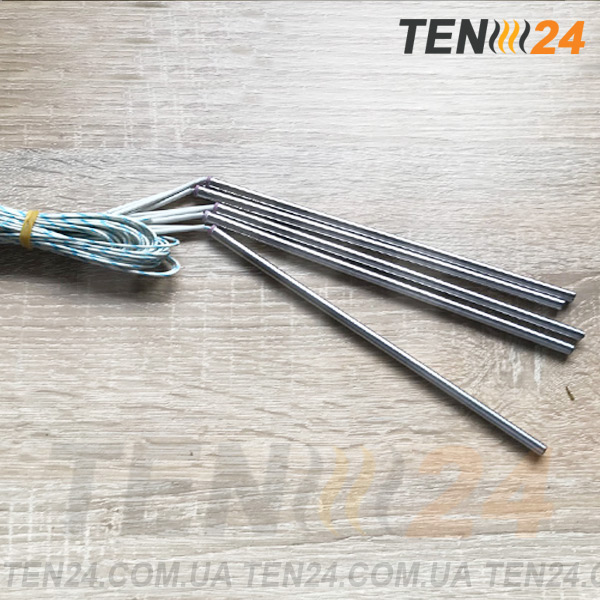

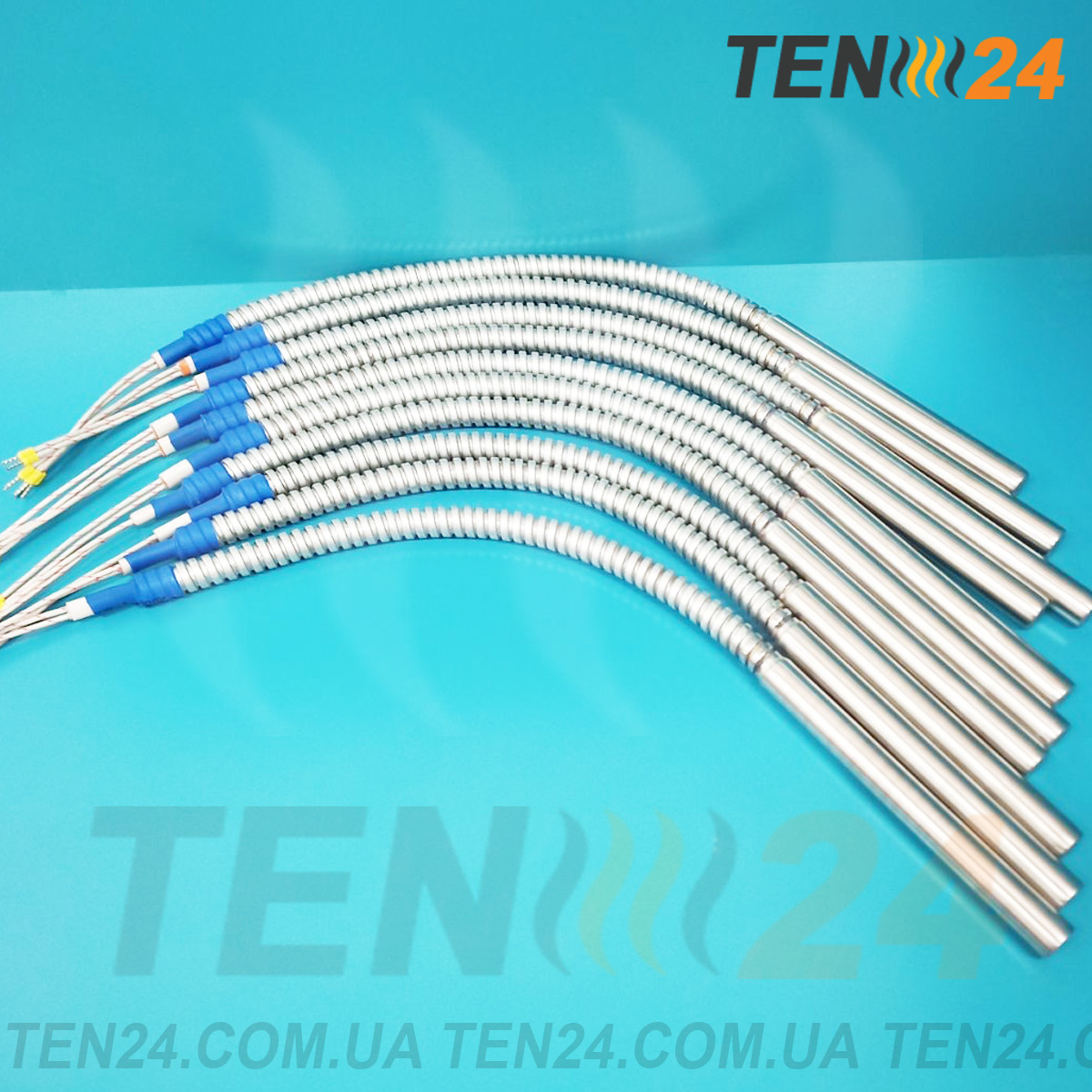

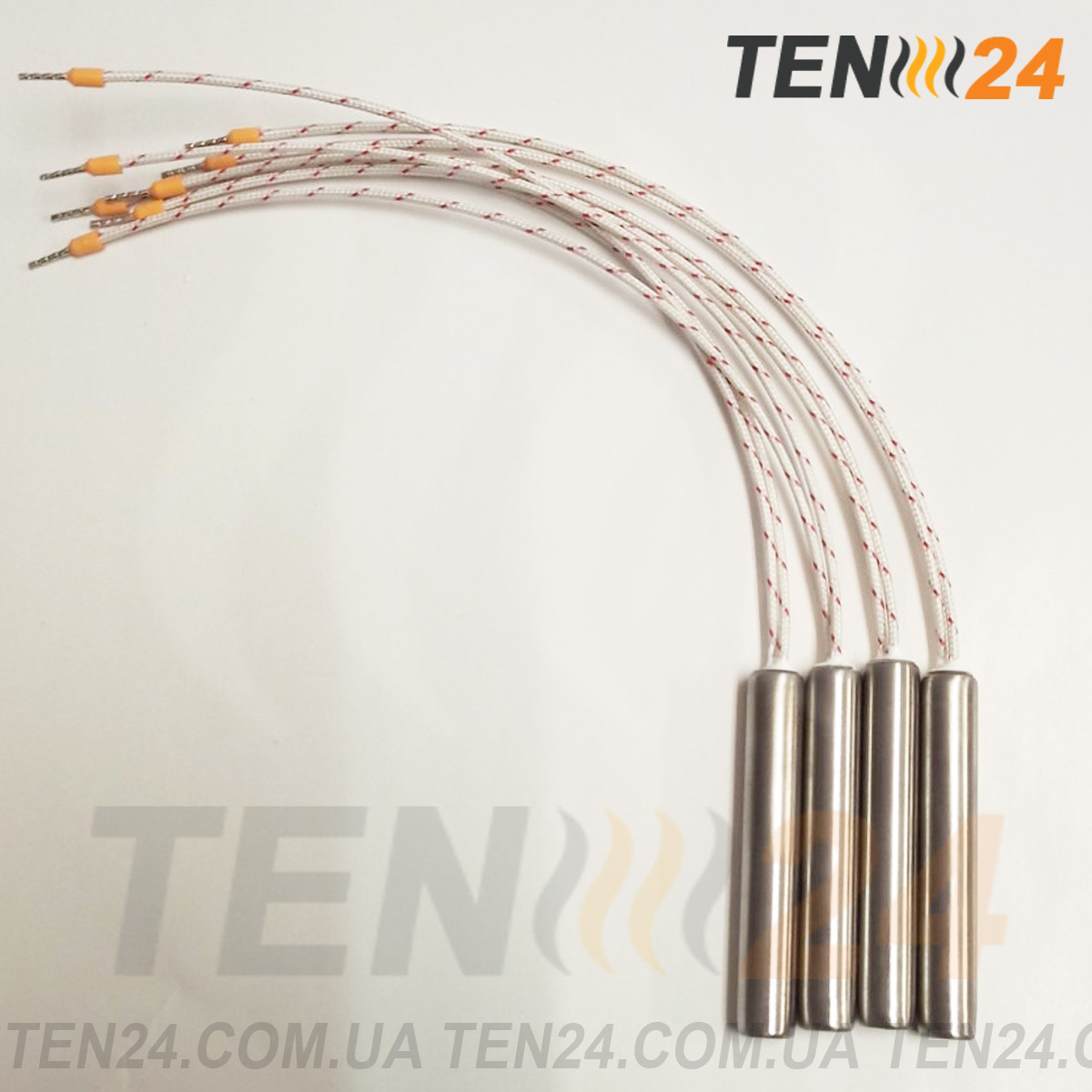

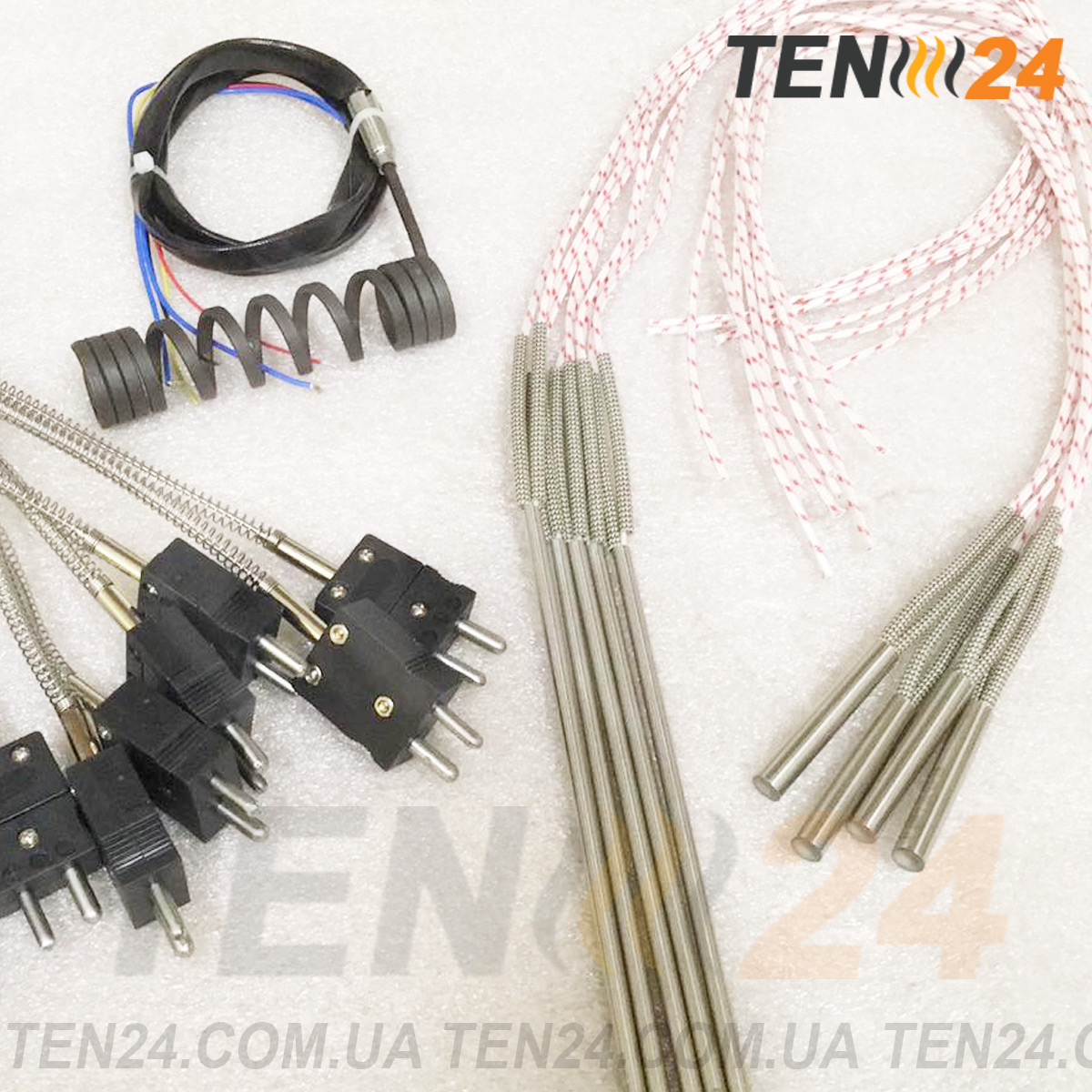

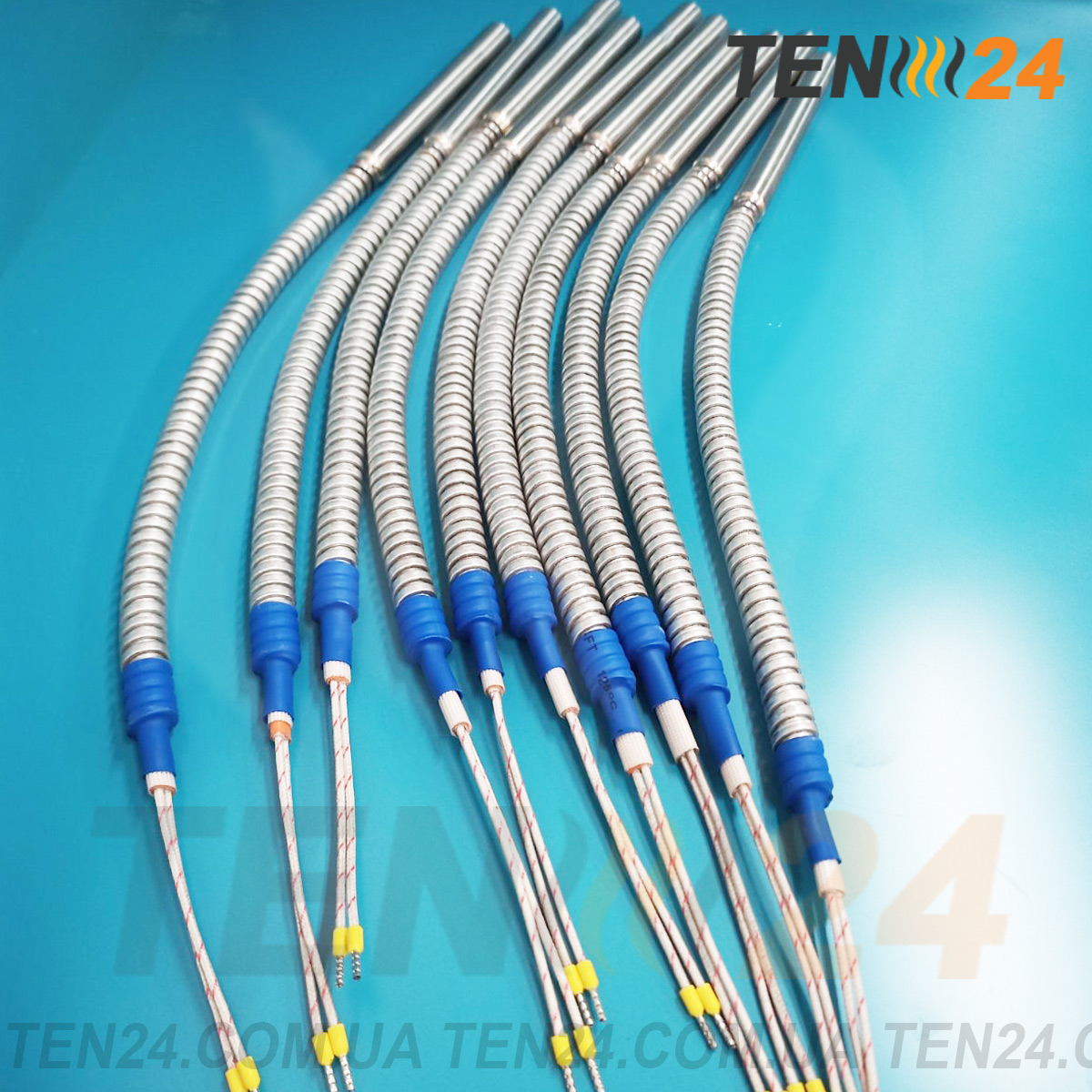

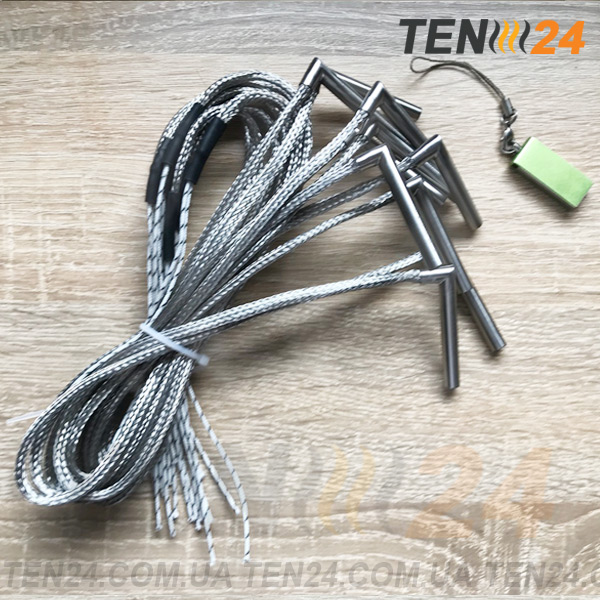

Cartridge (finger-type) heaters are primarily used in molds and other metal plates.

This type of heater has a high power density, which makes it possible to achieve high temperatures with a small size of the heating element.

  • Diameter: 3-50mm

  • Length: 50-1300mm

  • Maximum power: 50 W/cm2

  • Maximum temperature: 500 °C

TEN24 can manufacture custom Cartridge Heaters with specifications you need for a short time. The production time of the heater is 2-3 days.

We also have standard models of heating elements in stock, check the availability and cost with managers by e-mail or through the form on the website.

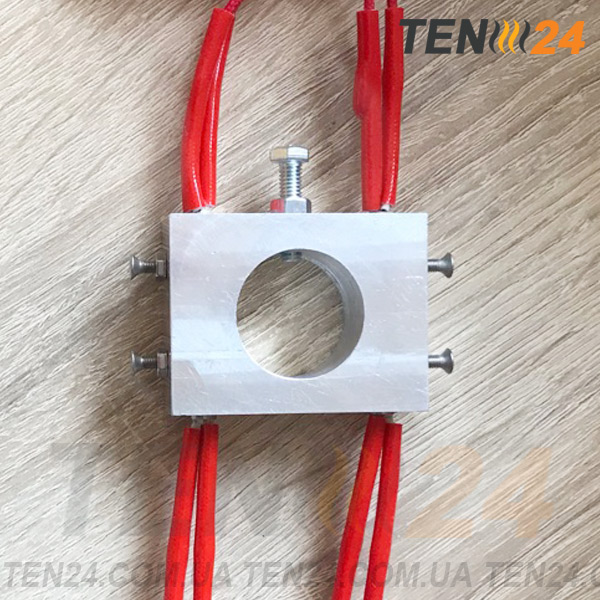

Cartridge Heaters are typically inserted into drilled holes to heat platens and molds or used as liquid immersion heaters.

Applications

  • Molds
  • Hot Stamping
  • Plastic Molding
  • Glue Guns
  • Laminating Presses
  • Heating Gases and Liquids
  • Medical Equipment
  • Packaging Equipment
  • Hot Runner Molds
  • Plastic Extruders

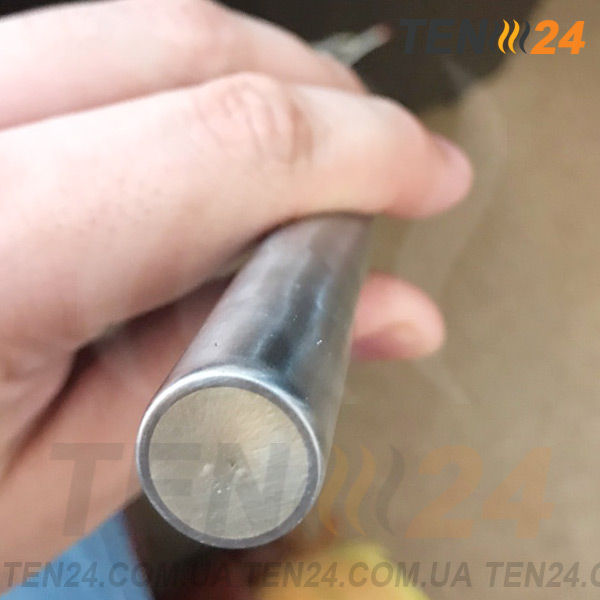

The shell of Cartridge heating elements is made of heat-resistant stainless steel or brass. The shell tube is soldered on one side, and the wire leads are placed on the other. A heating element made of high-resistance nickel-chromium wire is placed inside the shell on a heat-resistant ceramic core. Free-flowing magnesium dioxide powder acts as insulation in cartridge-type heaters.

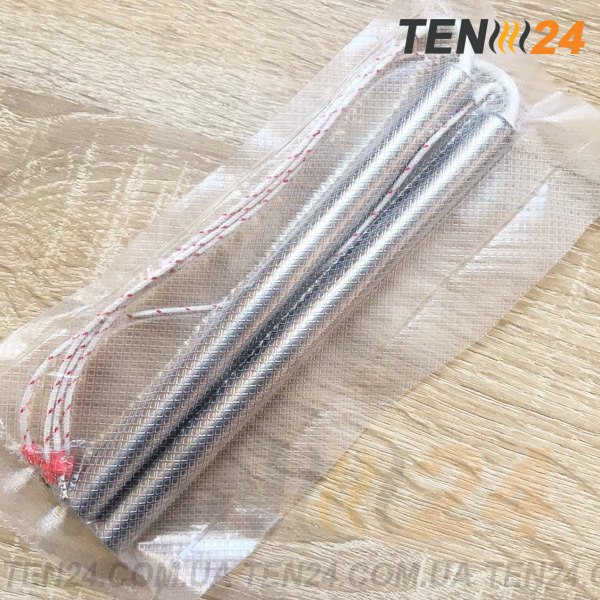

You can buy cartridge heaters from TEN 24 with custom-made according to your characteristics or in standard versions from the warehouse. Production time is only from two to 5 days. Finished heaters are delivered in vacuum packaging, which increases the shelf life of the heaters in the warehouse. You can place an order by email or through our website.

Delivery

Cartridge Heaters can be delivered from Odessa (Ukraine) to European countries: Germany, Austria, Romania, Slovakia, Czech Republic, France, Moldova, and others.

Specifications

Cartridge Heaters

Diameter, mm

from 50

Length, mm

from 1300

Power (max), W/cm

50

Max temperature, °С

500

Voltage, V

12, 24, 48, 110, 220/230, 400

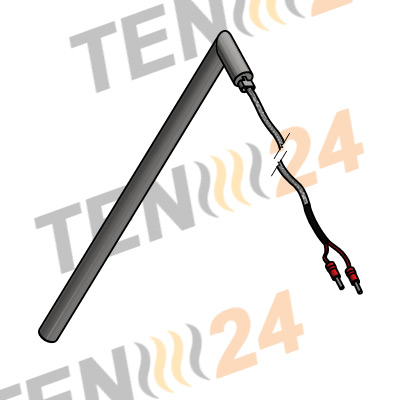

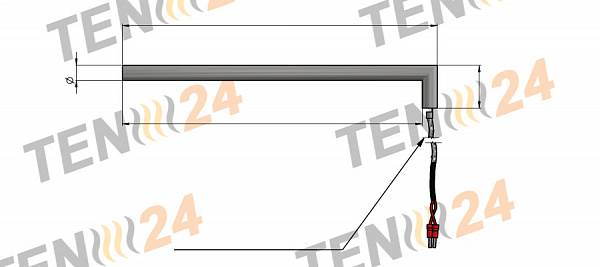

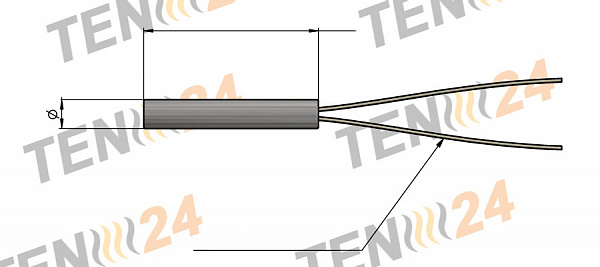

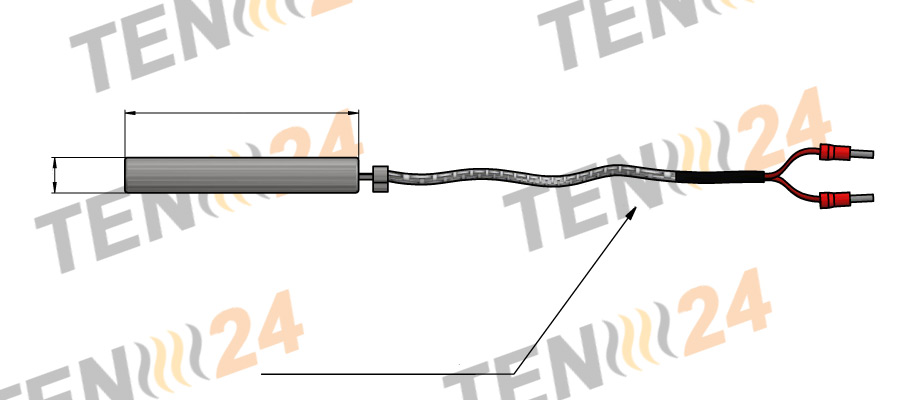

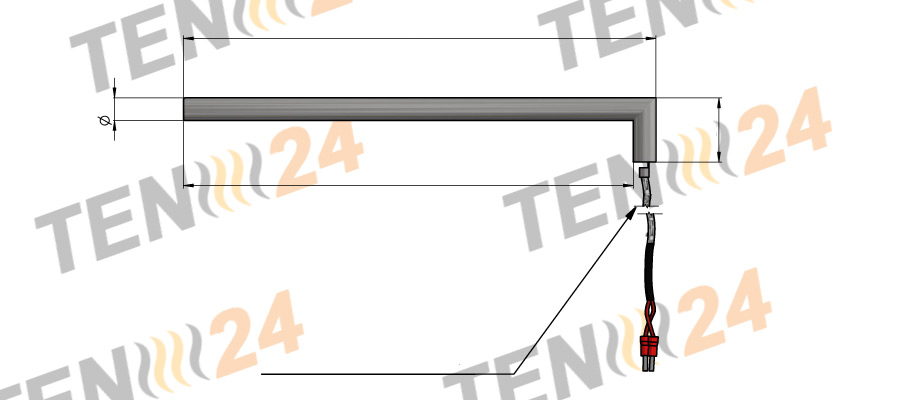

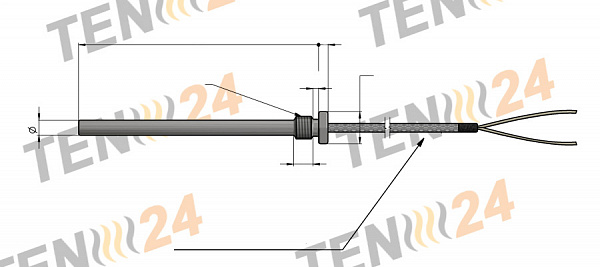

Drawing

Ask a Question

Complete the inquiry form. If you have any questions, or perhaps would like to know more about what we do.
